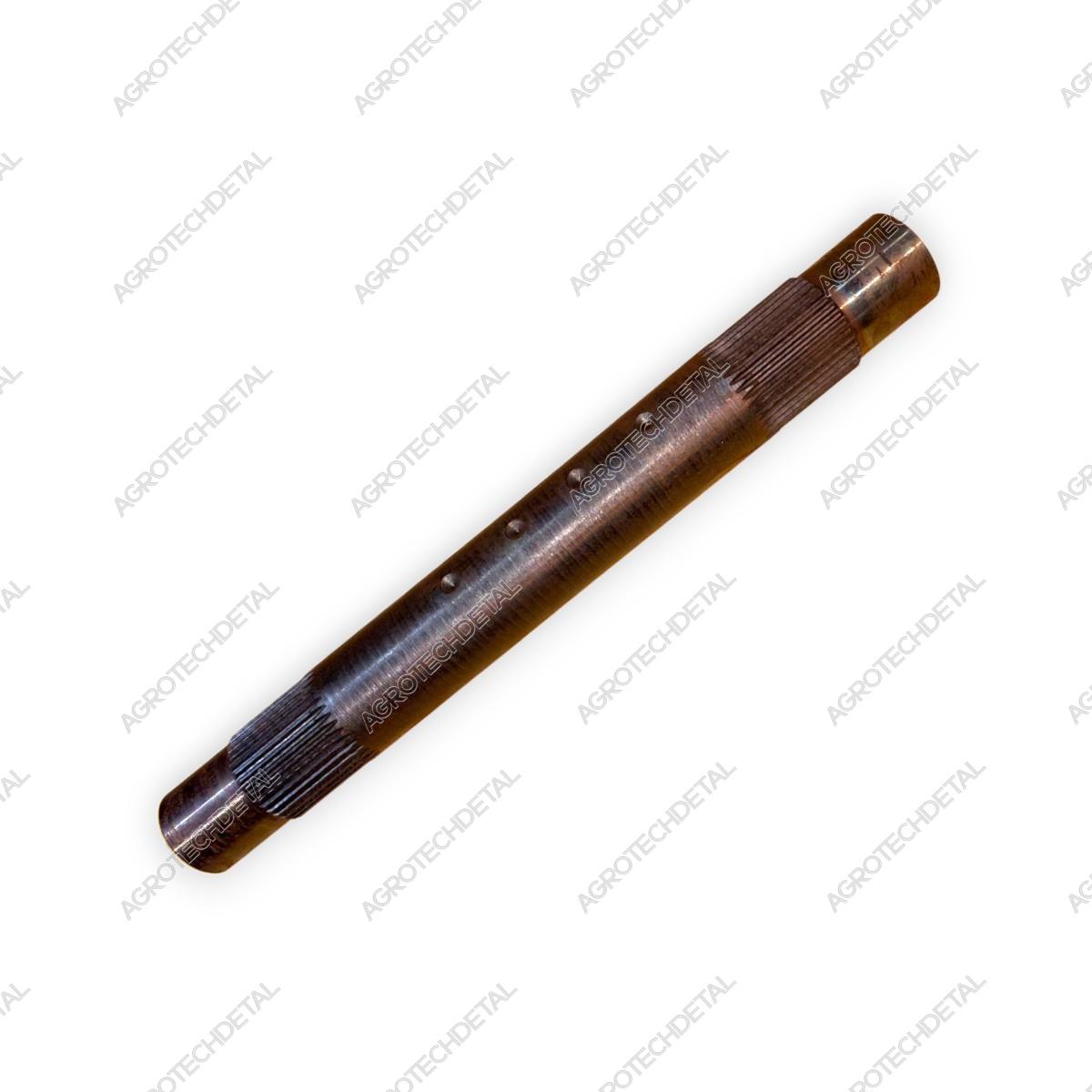

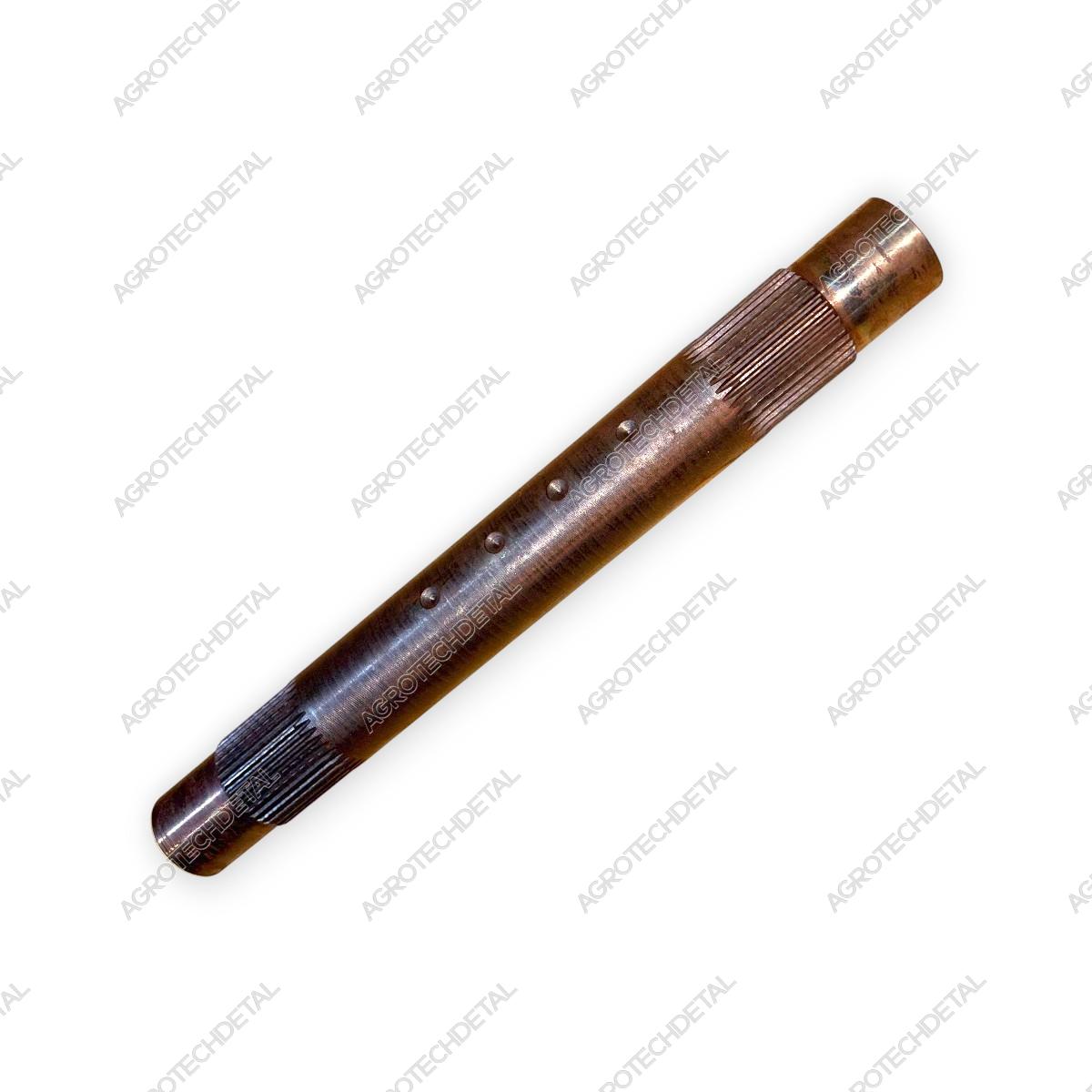

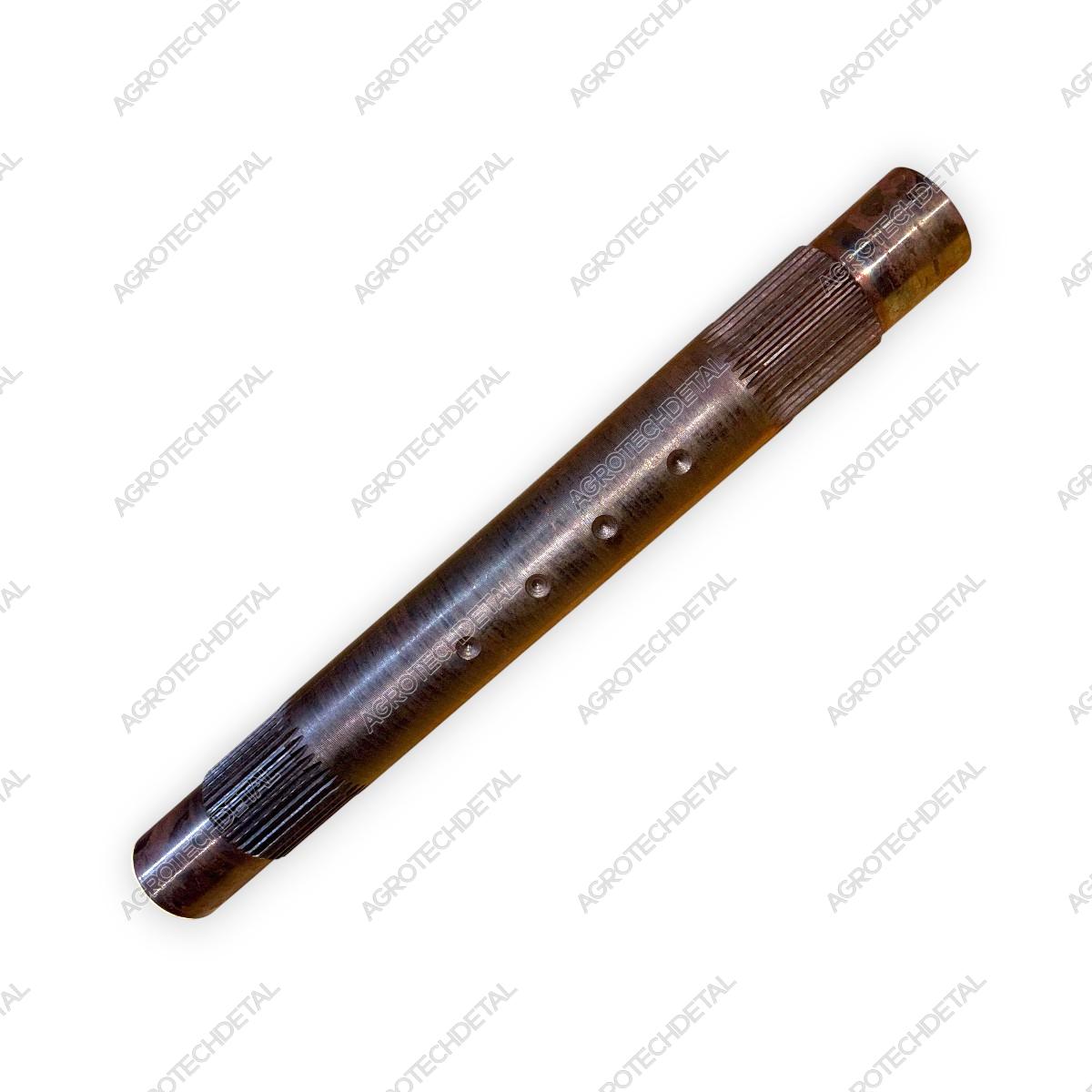

The lever shaft 151K.56.018 is used in the hitch of HTZ tractors with a configuration for two hydraulic cylinders. It serves as the main part on which the entire lifting mechanism is formed. Bushings and boots are installed inside the shaft, the upper axis 150.56.161 passes through it, and the shaft itself is fixed in the rod levers 120.56.015.
Lifting levers 150.56.151A and 151K.56.105-03 are mounted on the shaft splines, transmitting force from the hydraulic cylinders to the lower links. Also, a traverse 77.60.109 is installed on the shaft, to which the central screw of the linkage is then attached.
The part is produced both by HTZ and LKMZ factories, and by private manufacturers, while high-quality versions are made of durable steel and are designed for long-term operation under load.
Application:
HTZ tractors - T-150, T-151, T-156, HTZ-17221, HTZ-242, HTZ-248 and other models equipped with a hitch with two hydraulic cylinders.
Lifting levers 150.56.151A and 151K.56.105-03 are mounted on the shaft splines, transmitting force from the hydraulic cylinders to the lower links. Also, a traverse 77.60.109 is installed on the shaft, to which the central screw of the linkage is then attached.
The part is produced both by HTZ and LKMZ factories, and by private manufacturers, while high-quality versions are made of durable steel and are designed for long-term operation under load.
Application:
HTZ tractors - T-150, T-151, T-156, HTZ-17221, HTZ-242, HTZ-248 and other models equipped with a hitch with two hydraulic cylinders.
-
Number of uses in a unit/technique 1 pcs
-
Installation location рычаг штока
-
Catalog number 151К.56.018
-
Node навесное устройство
