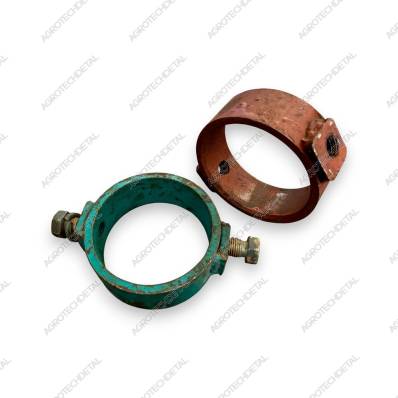

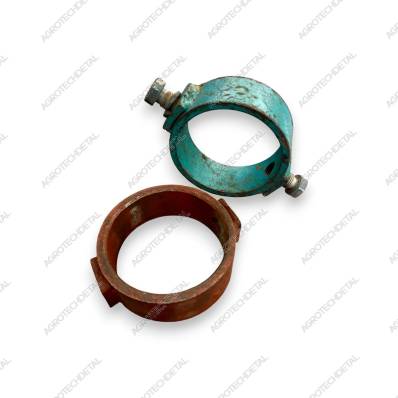

The thrust ring 150.56.032 is used in the linkage of KhTZ tractors and is installed on the lever shaft (splined shaft of the linkage) - 151.56.018 (for one hydraulic cylinder) or 151K.56.018 (for two hydraulic cylinders). Its main function is to limit the travel of the yoke (77.60.109) or the top link head (for example, 150.56.034A / 151.56.056) to prevent them from moving along the shaft.
The ring is fixed with two setscrews 150.56.149 using washers 1465G.6402, which ensures a secure fit and resistance to vibration loads.
Used in mounted systems of KhTZ tractors:
T-150, T-150K, KhTZ-17221, KhTZ-17222, KhTZ-242K, KhTZ-248K and other models equipped with a rear three-point hitch.
The ring is fixed with two setscrews 150.56.149 using washers 1465G.6402, which ensures a secure fit and resistance to vibration loads.
Used in mounted systems of KhTZ tractors:
T-150, T-150K, KhTZ-17221, KhTZ-17222, KhTZ-242K, KhTZ-248K and other models equipped with a rear three-point hitch.
-
Chassis type колесный / гусеничный
-
Applicability by brand ХТЗ
-
Number of uses in a unit/technique 2 pcs
-
Installation location верхний вал рычагов
-
Catalog number 150.56.032
-
Node навесное устройство
