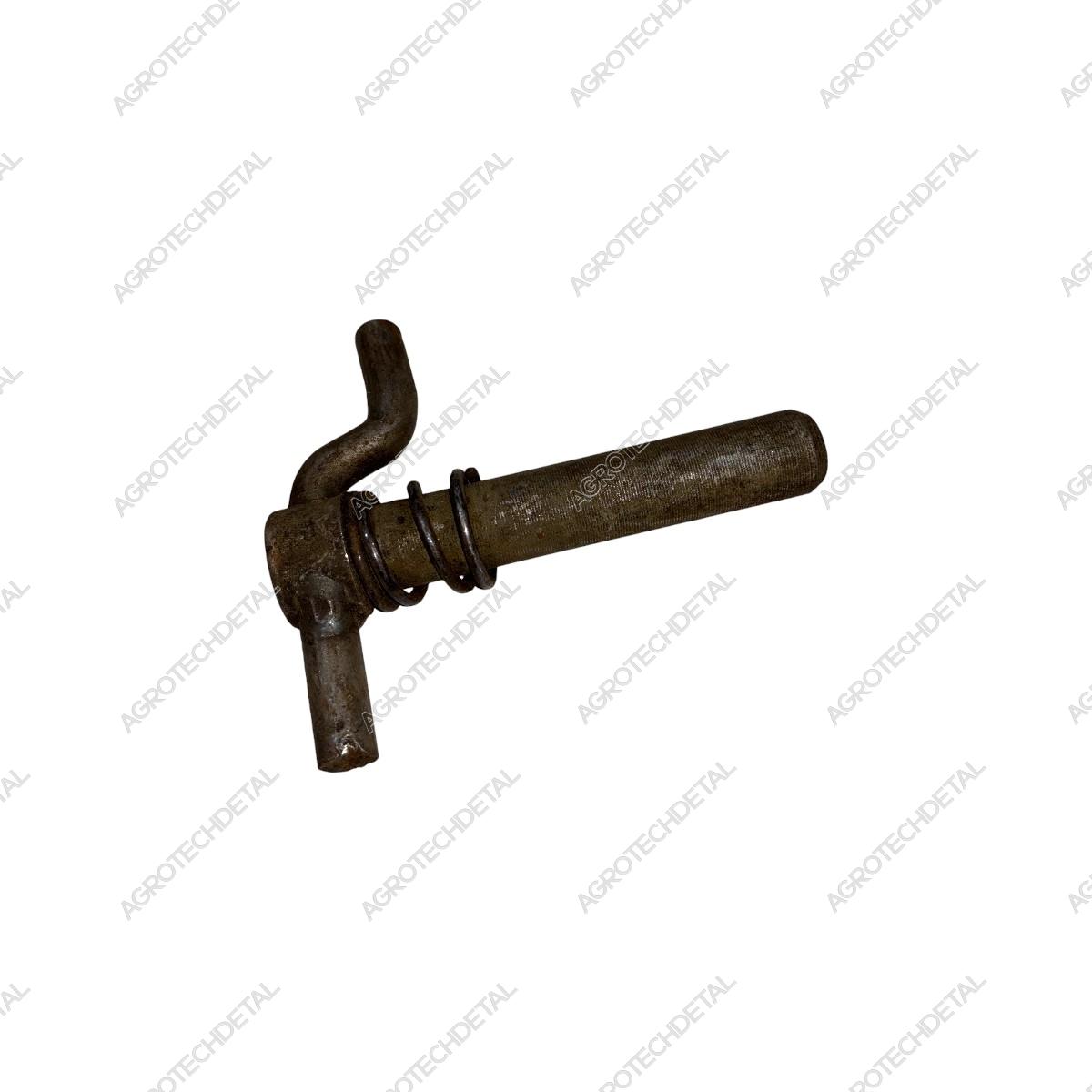

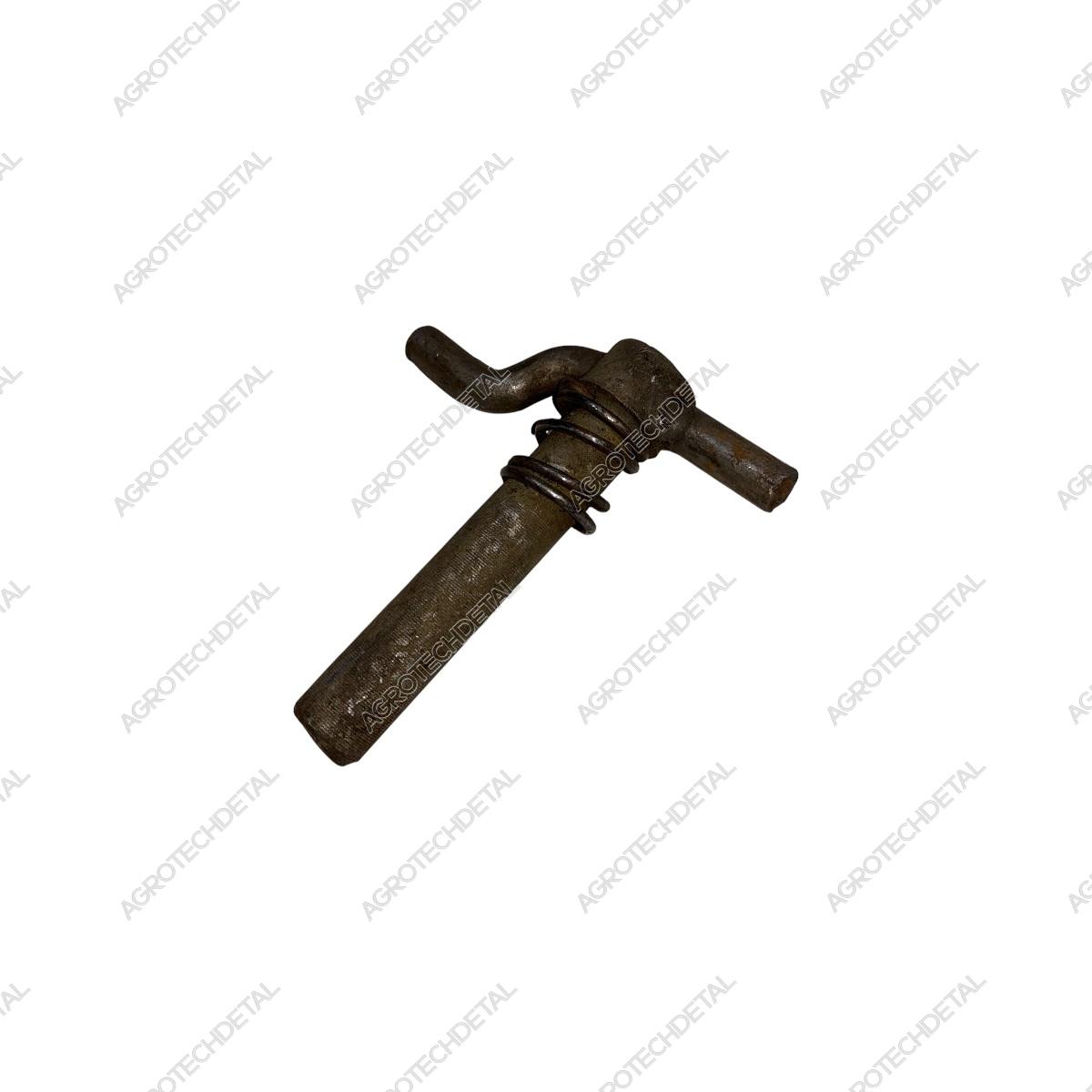

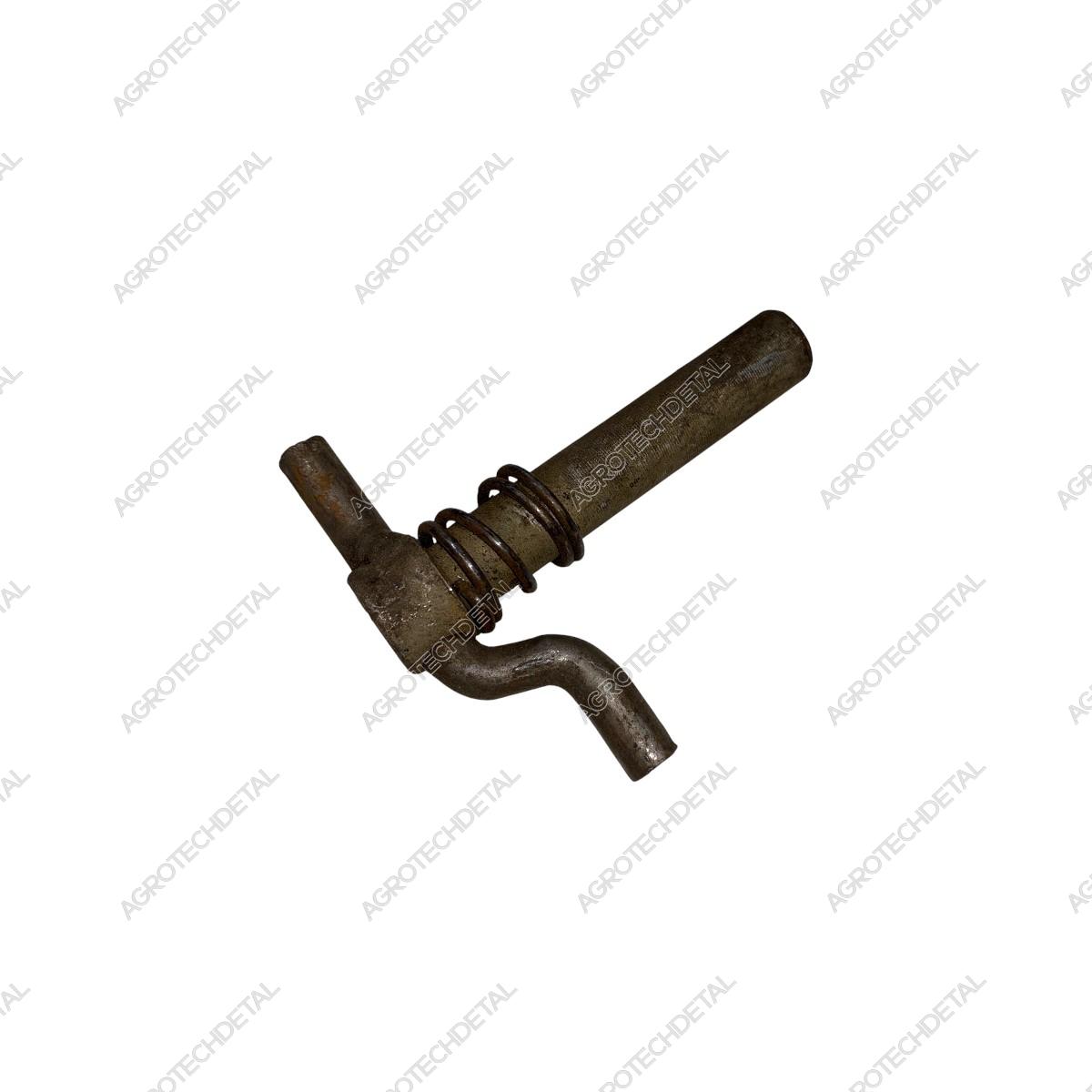

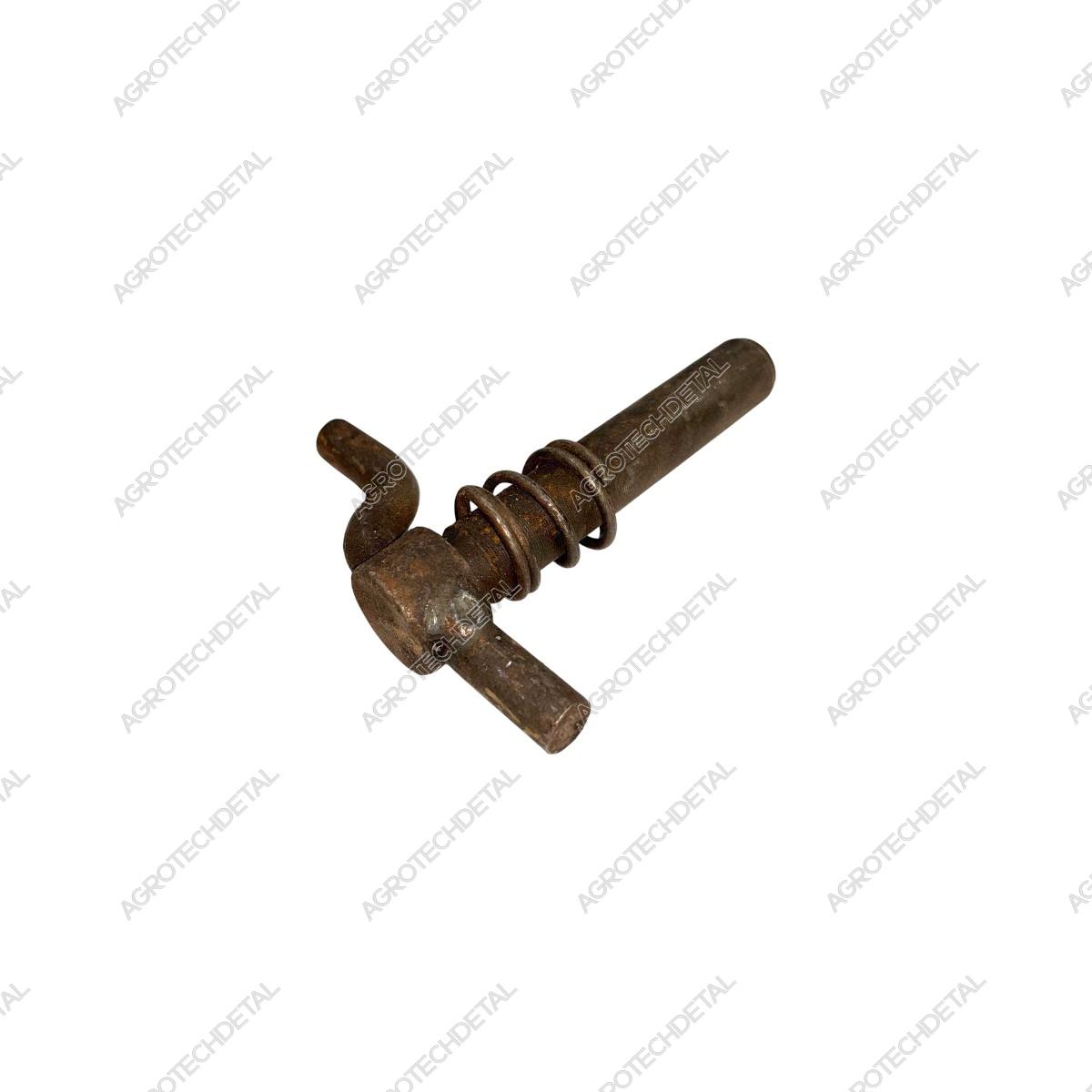

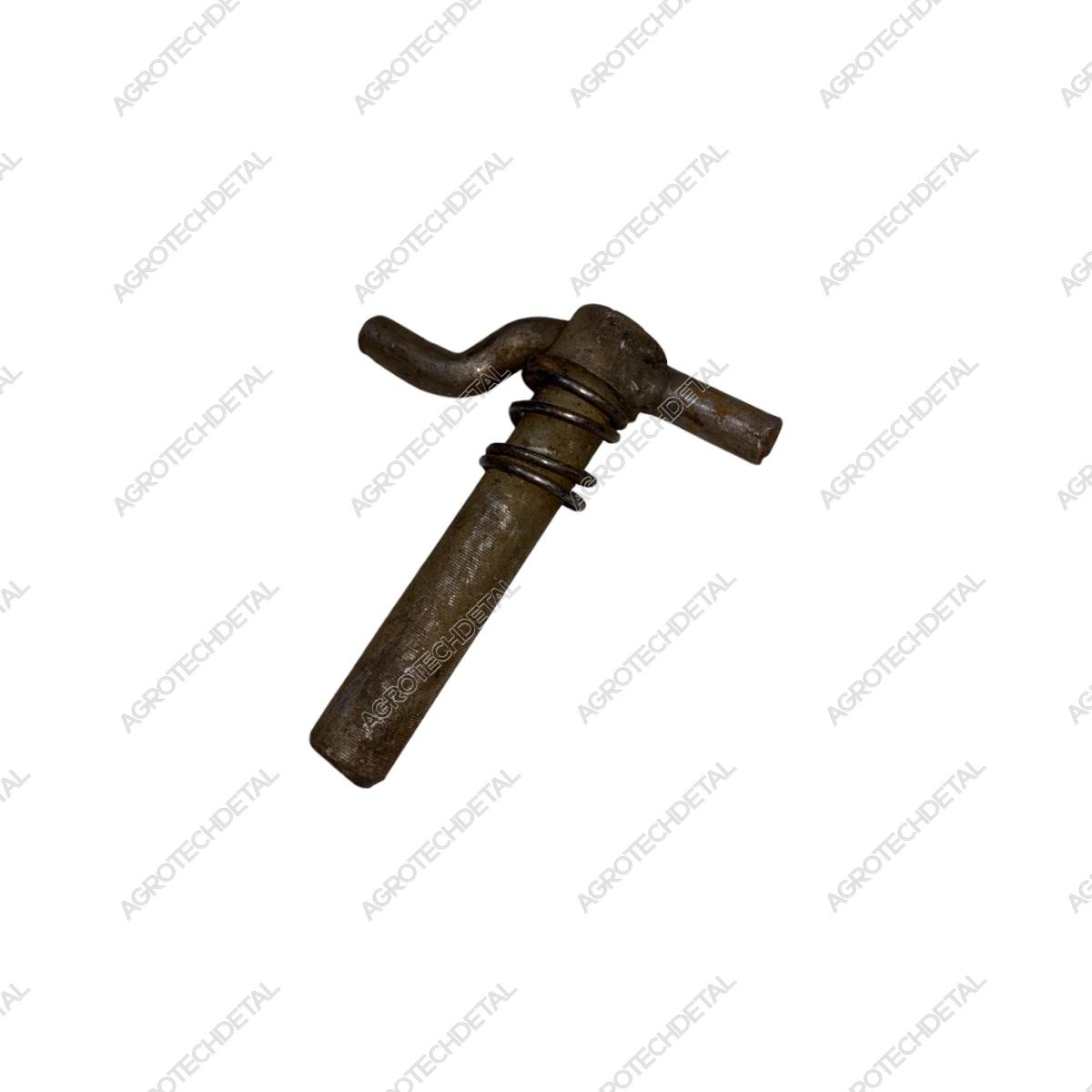

The traction pin 150.56.038 is an important element of the linkage of KhTZ tractors. It is installed in a special groove of rods 151.56.051 and 151.56.052, providing a movable and reliable connection of the hinge elements.
It must be equipped with a spring 77.60.128, which creates the necessary force during operation of the hinged mechanism and prevents play in the connection. This solution makes it possible to increase the stability and accuracy of operation of the attached equipment when operating the tractor in the field.
The part is made of high-strength hardened steel, resistant to wear and designed for long-term dynamic loads. Due to the simplicity of the design, the pin and spring are easy to maintain and, if necessary, replaced without dismantling the entire assembly.
It is used on tractors of the KhTZ family - T-150, T-151, T-156, KhTZ-17221, KhTZ-242, KhTZ-248 and other models with a similar hitch system.
It must be equipped with a spring 77.60.128, which creates the necessary force during operation of the hinged mechanism and prevents play in the connection. This solution makes it possible to increase the stability and accuracy of operation of the attached equipment when operating the tractor in the field.
The part is made of high-strength hardened steel, resistant to wear and designed for long-term dynamic loads. Due to the simplicity of the design, the pin and spring are easy to maintain and, if necessary, replaced without dismantling the entire assembly.
It is used on tractors of the KhTZ family - T-150, T-151, T-156, KhTZ-17221, KhTZ-242, KhTZ-248 and other models with a similar hitch system.
-
Chassis type колесный / гусеничный
-
Applicability by brand ХТЗ
-
Number of uses in a unit/technique 2 pcs
-
Installation location тяга
-
Catalog number 150.56.038
-
Node устройство навесное
