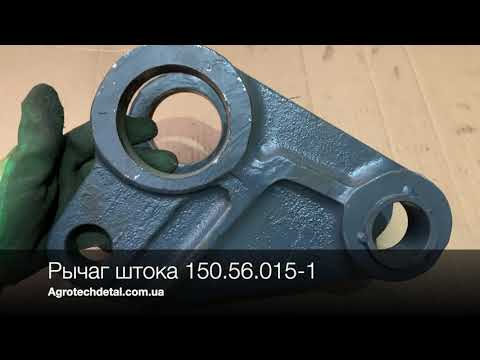

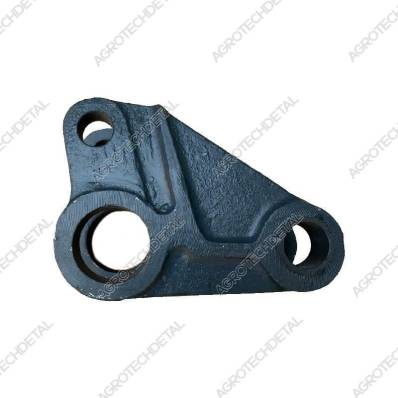

The rod lever 150.56.015-1 is a part of the old model of the hitch on KhTZ tractors, which received the unofficial name “motorcycle” among mechanics because of its characteristic curved shape. Designed to transfer force from the hydraulic cylinder for lifting the attachment to the system of levers and rods, ensuring smooth and reliable control of the attachment.
The lever is designed for one hydraulic cylinder and has a hole with a diameter of 45 mm for the rod lever pin 150.56.136-1. Installed on the lever shaft assembly 151.56.018-2 (in the catalog the number without bushings is 151.56.117-1). In operation, the lever interacts with the lifting left lever 150.56.151A, which is fixed on the bracket using the locking pin 151.56.132.
Made from durable alloy steel, which ensures durability, bending resistance and reliable transmission of force when operating attachments.
Application:
Used on tractors T-150, T-151, T-156, KhTZ-17221 and other KhTZ models with an old-style hitch for one hydraulic cylinder.
Features:
The lever is designed for one hydraulic cylinder and has a hole with a diameter of 45 mm for the rod lever pin 150.56.136-1. Installed on the lever shaft assembly 151.56.018-2 (in the catalog the number without bushings is 151.56.117-1). In operation, the lever interacts with the lifting left lever 150.56.151A, which is fixed on the bracket using the locking pin 151.56.132.
Made from durable alloy steel, which ensures durability, bending resistance and reliable transmission of force when operating attachments.
Application:
Used on tractors T-150, T-151, T-156, KhTZ-17221 and other KhTZ models with an old-style hitch for one hydraulic cylinder.
Features:
- durable, time-tested design;
- exact mounting dimensions for installation without modifications;
- Fully compatible with standard parts of the HTZ hinged mechanism.
-
Applicability by brand ХТЗ
-
Number of uses in a unit/technique 1 pcs
-
Installation location вал рычагов
-
Catalog number 150.56.015-1
-
Node навесное устройство
-
Diameter d=45
-
Modification под один гидроцилиндр
