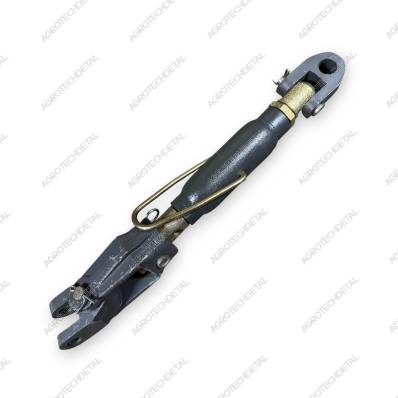

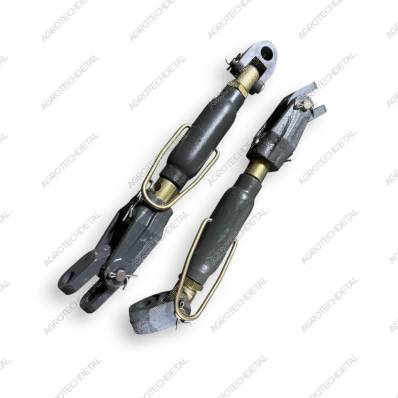

The brace 172.56.039-1 is an element of a new type of attachment (EURO attachment), designed to adjust and stabilize the position of the attachments relative to the tractor. Installed in two pieces - one on each side of the rear linkage.
One end of the brace is connected through a shackle to the lifting lever (left or right), and the other end - also through a shackle - is attached to the lower link: right 181.56.025 or left 181.56.026. Together with the central screw 172.56.029-1 forms a complete linkage adjustment unit, providing precise adjustment of the position of the attachment.
The new type of brace has a reinforced design, increased service life and more convenient maintenance compared to the old type. Thanks to its unified dimensions, it can be installed not only on modern models, but also on tractors of previous generations.
It is used on tractors HTZ-17221, HTZ-17222, HTZ-242, HTZ-248, and can also be adapted for T-150, T-151, T-156 and other models of the Kharkov Tractor Plant (HTZ) family.
One end of the brace is connected through a shackle to the lifting lever (left or right), and the other end - also through a shackle - is attached to the lower link: right 181.56.025 or left 181.56.026. Together with the central screw 172.56.029-1 forms a complete linkage adjustment unit, providing precise adjustment of the position of the attachment.
The new type of brace has a reinforced design, increased service life and more convenient maintenance compared to the old type. Thanks to its unified dimensions, it can be installed not only on modern models, but also on tractors of previous generations.
It is used on tractors HTZ-17221, HTZ-17222, HTZ-242, HTZ-248, and can also be adapted for T-150, T-151, T-156 and other models of the Kharkov Tractor Plant (HTZ) family.
-
Chassis type колесная / гусеничная
-
Applicability by brand ХТЗ
-
Number of uses in a unit/technique 2 pcs
-
Catalog number 172.56.039-1
-
Node навесное устройство
