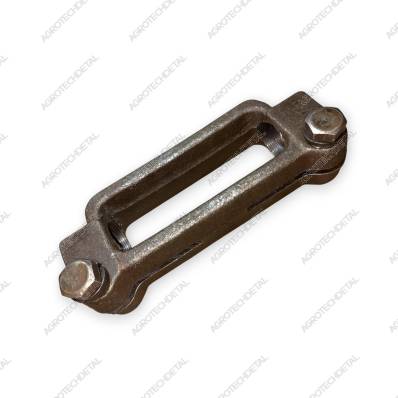

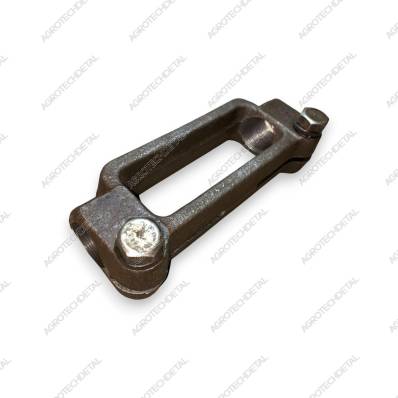

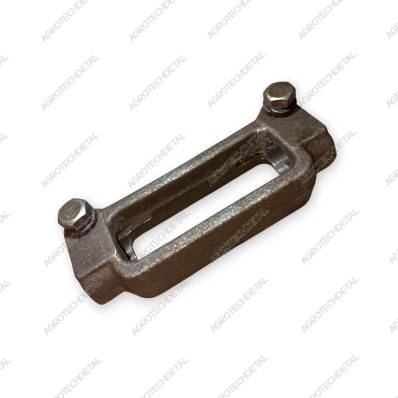

The top link coupling 77.60.144A is an integral part of the HTZ tractor hitch and is included in the top link assembly (central screw) 150.56.029-1. The part performs a connecting and adjusting function, ensuring the correct operation of the central link of the hitch.
The coupling is equipped with two M20x55.7796 bolts, which ensure its reliable fastening in the unit. On one side, a screw 150.56.347 / 77.60.139 is screwed into the threaded part of the coupling, on the other side the upper link head is installed - depending on the configuration, this can be 150.56.030A, 150.56.034A, 151.56.058 or 151.56.056. This design allows you to adjust the length of the top link and fine-tune the position of the attachment.
Clutch 77.60.144A is made of durable metal, designed for high traction and shock loads, which ensures long service life and stable operation of the hinged mechanism. It is used in the attachment of HTZ tractors, including models of the T-150, T-151, HTZ-17221 family and their modifications.
-
Chassis type колесный / гусеничный
-
Applicability by brand ХТЗ
-
Number of uses in a unit/technique 1 pcs
-
Installation location центральный винт / верхняя тяга
-
Catalog number 77.60.144А
-
Node навесное устройство
