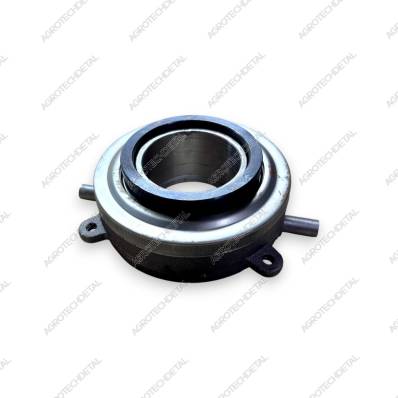

Release bearing 01M-21s9 (layer SMD-60) is a key element of the clutch, ensuring smooth and reliable separation of the engine and transmission when the clutch pedal is depressed. Used on HTZ tractors with the SMD-60 engine and its modifications.
This unit transmits force from the release lever to the clutch pressure plate and operates under conditions of constant loads and high temperatures.
Composition of release bearing 01M-21s9:
pressure bearing stop 01M-2121;
ring 1B150;
oil seal cover 01M-2122;
oil seal rings 01M-2120 and 01M-2124;
O-ring 01M-2140;
bearing 120 or 46120;
clutch housing 01M-2119;
oil can 2.3.45.Ts6 for lubricating the unit.
Versions:
Budget version - equipped with a standard 120 bearing, optimal for medium loads.
Premium version - equipped with reinforced rings, stop, cover and angular contact bearing 46120, which provides increased service life and resistance to overheating.
Features:
fully compatible with clutch 151.21.021-3 and release bearing housing 150.21.222;
made from heat-resistant materials;
equipped with an oiler for periodic maintenance;
resistant to vibration and axial loads.
Used on tractors:
T-150, T-151, T-156, HTZ-17221, HTZ-242K, HTZ-248 and other models with the SMD-60 / SMD-62 engine.
The part is distinguished by its reliability, ease of maintenance and the ability to completely replace the bearing block without dismantling the entire clutch assembly.
