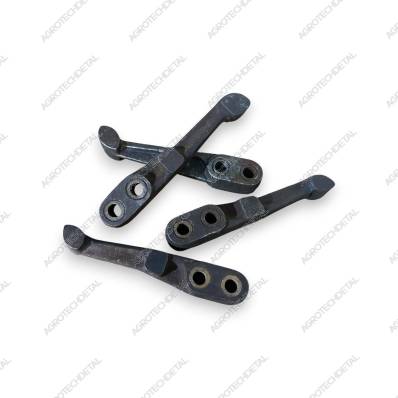

Release lever assembly 150.21.023 / 150.21.023A is used in the design of the main clutch of KhTZ tractors. The assembly unit consists of a lever 150.21.205 and two bushings 125.21.206-1, which provide a movable and wear-resistant connection in the clutch release mechanism.
The lever is installed in the amount of 4 pieces in the main clutch assembly assembly 151.21.011-3 and works in cooperation with the fork 125.21.208, the release lever spring 150.21.210, the bracket 150.21.299-1 and the release lever ring 150.21.240, ensuring uniform and correct clutch disengagement.
The part is used on tractors HTZ T-150, T-150K, T-151, T-151K, T-156, as well as on other agricultural and special equipment equipped with an SMD-60 / SMD-62 clutch.
The lever is installed in the amount of 4 pieces in the main clutch assembly assembly 151.21.011-3 and works in cooperation with the fork 125.21.208, the release lever spring 150.21.210, the bracket 150.21.299-1 and the release lever ring 150.21.240, ensuring uniform and correct clutch disengagement.
The part is used on tractors HTZ T-150, T-150K, T-151, T-151K, T-156, as well as on other agricultural and special equipment equipped with an SMD-60 / SMD-62 clutch.
-
Applicability by brand ХТЗ
-
Number of uses in a unit/technique 4 pcs
-
Installation location корзина
-
Catalog number 150.21.023А / 150.21.023
-
Node сцепление
-
Engine СМД-60
