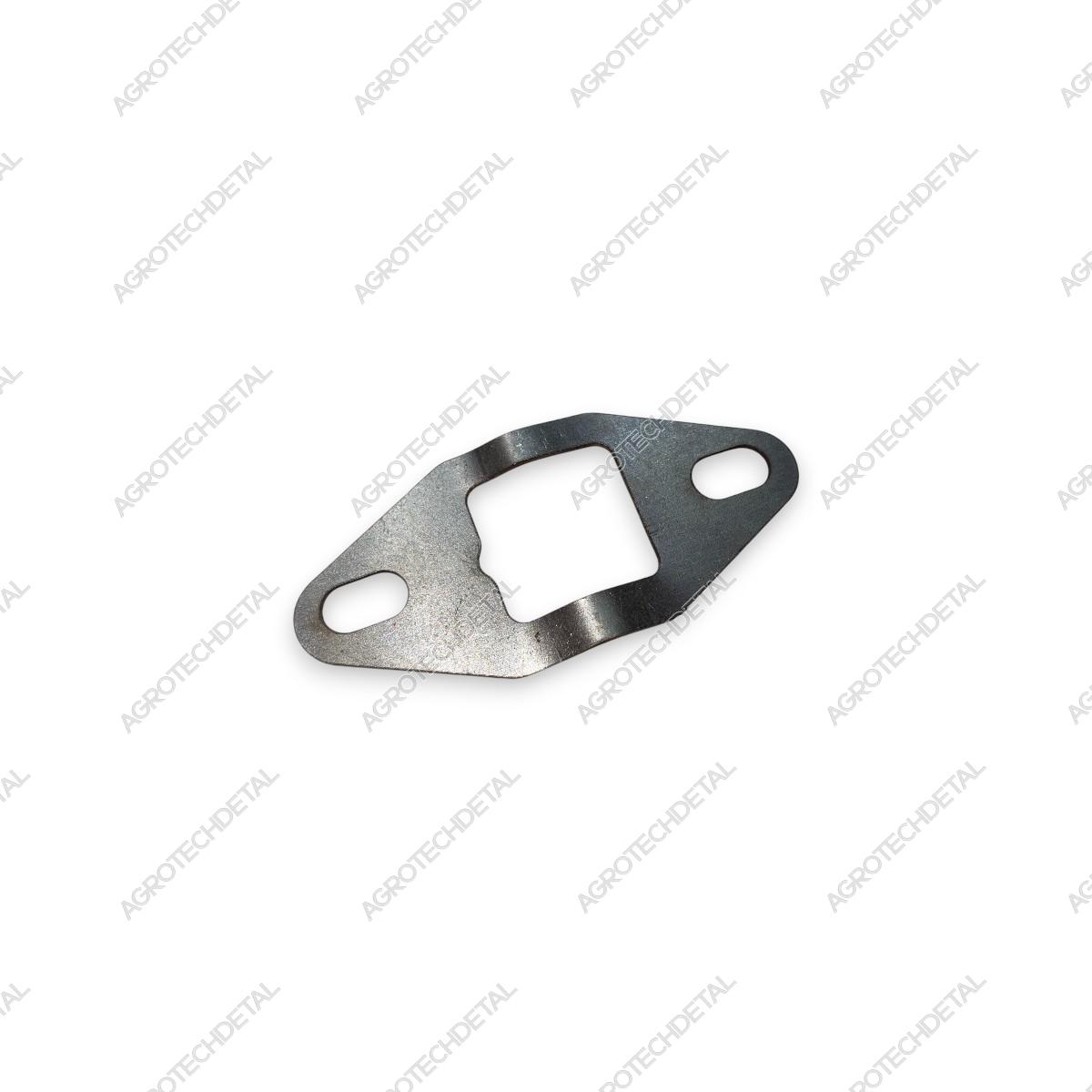

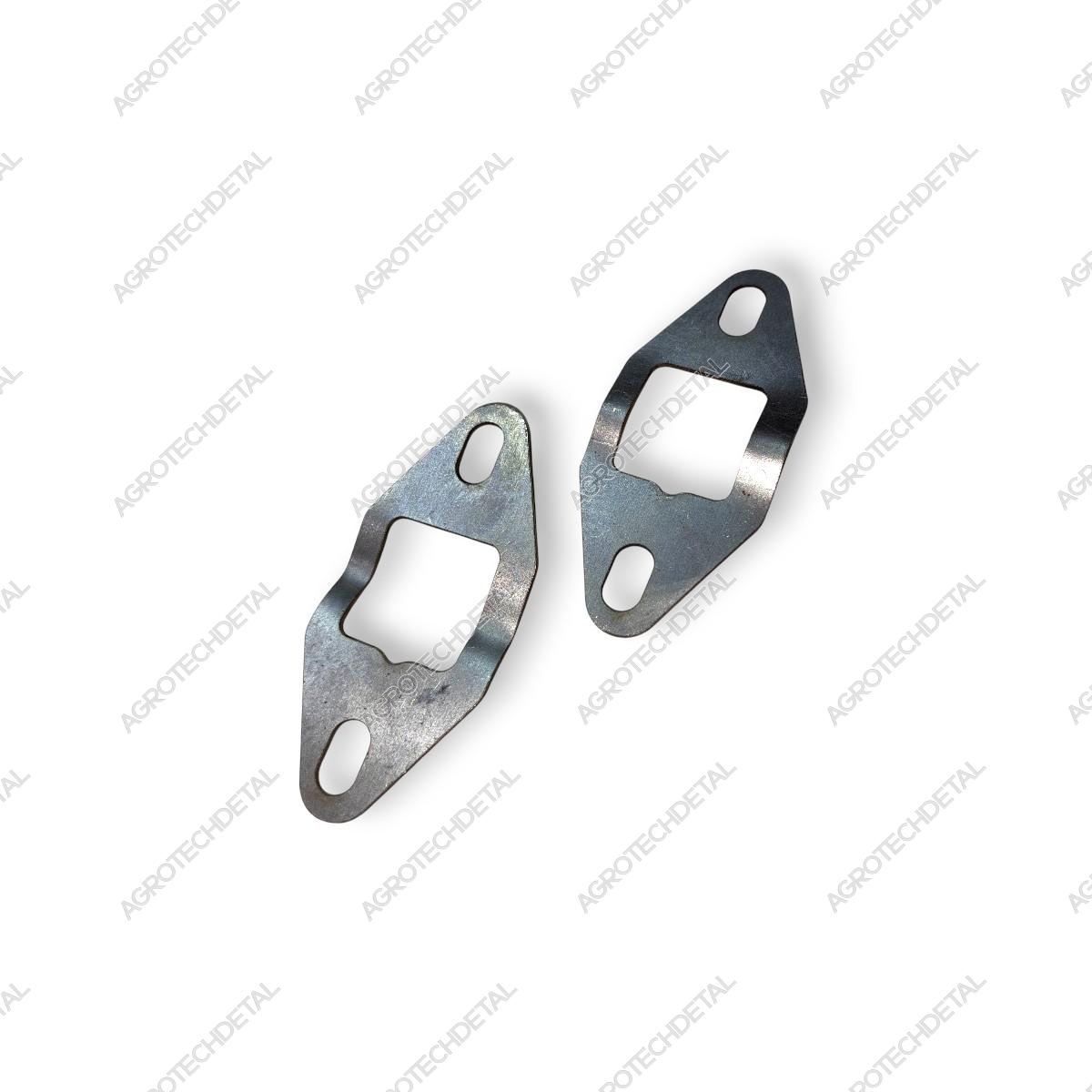

Locking spring 125.21.233-1 is an element of the main clutch assembly of HTZ tractors with SMD-60 engines, designed to fix the fork 125.21.208 in the desired position, preventing it from turning and spontaneous adjustment changes.
Design features:
-
Adjacent to clutch housing 150.21.202A;
-
A fork 125.21.208 passes through the holes of the casing and the spring itself, on the threaded part of which an adjusting nut 125.21.209 is screwed from the outside;
-
Provides elastic pressure and reliable fixation, playing the role of a kind of clamp and limiter.
Application:
It is part of the clutch basket 150.21.022-2A, installed on HTZ tractors of the T-150, T-151, T-155 models and other modifications equipped with engines of the SMD family. Used in a mechanical clutch control system where accurate and reliable adjustment of the position of the release levers is important.
The part is simple in design, but is of great importance for the durability and correct operation of the clutch.
-
Applicability by brand ХТЗ
-
Number of uses in a unit/technique 4 pcs
-
Installation location кожух муфты
-
Catalog number 125.21.233-1
-
Node сцепление
