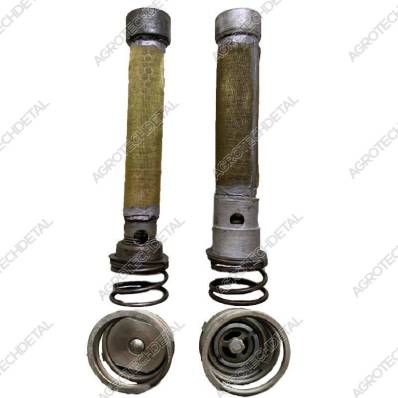

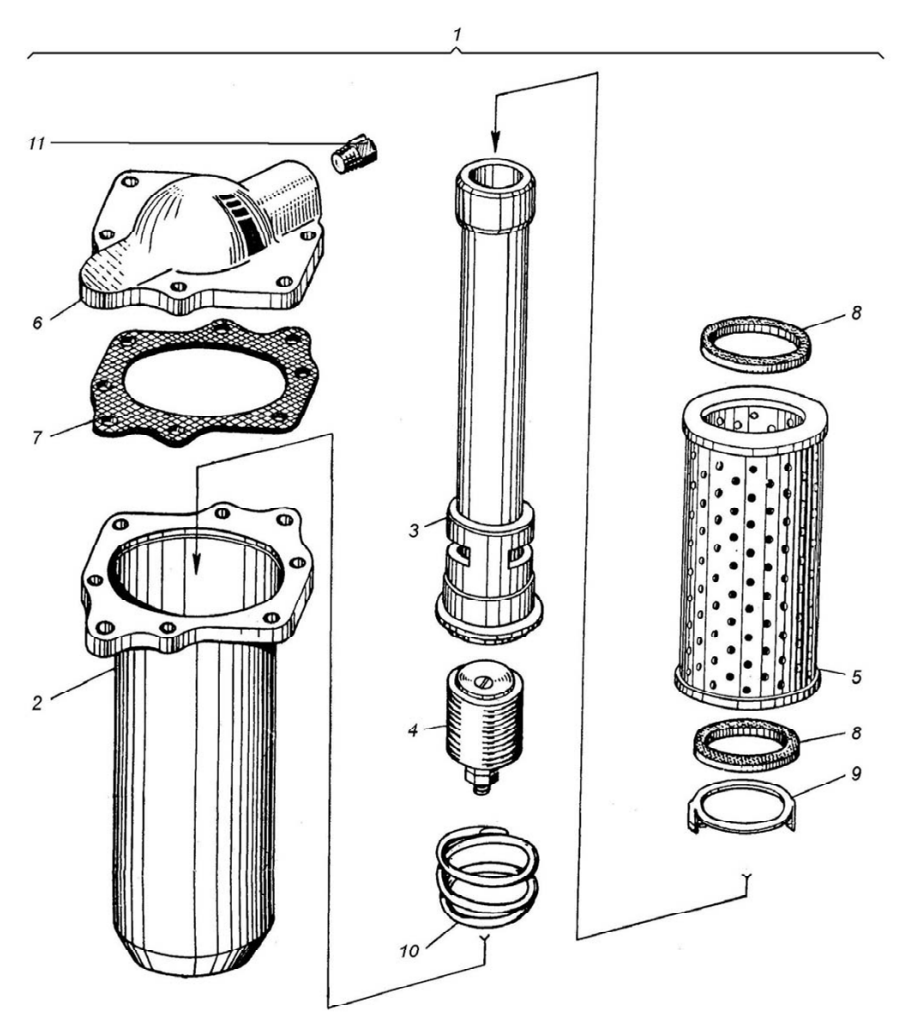

The filter pipe 151.37.015-3 is the central element of the oil filter and performs the function of directing the flow of oil through the filter element. Inside the pipe there is a safety valve 151.37.093, which regulates the pressure in the system, a spring 151.37.619-1 and a washer 151.37.189-1, which ensure its operation.
The pipe goes inside the filter element 761-00-00-00, and for tightness at the top and bottom two oil-resistant sealing rings 151.37.184 are used. This entire structure is assembled into a unit called a filter element set 151.37.012-2.
The elements are located inside the filter housing 151.37.017-1 (the so-called “filter flask”), which is closed on top by a lid 151.37.178-2 with a sealing gasket 151.37.183-1. The entire system assembly is called filter 151.37.014-1A.
The unit is designed for high-quality filtration of oil in the transmission of KhTZ tractors and is installed on such models as T-150, T-156, KhTZ-17221 and others. High quality workmanship of all components guarantees reliable protection of the system from contamination and long-term operation.
-
Applicability by brand ХТЗ
-
Number of uses in a unit/technique 1 pcs
-
Installation location 151.37.014-1А
-
Catalog number 151.37.015-3
-
Node коробка переключения передач
