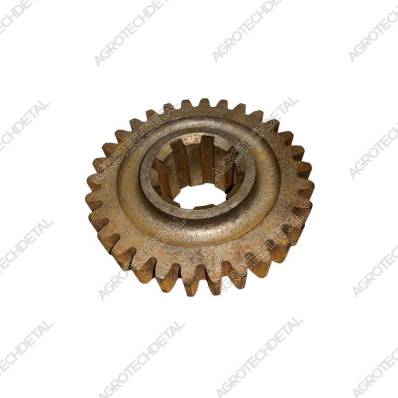

The Gear 150.37.124-5with the number of teeth z=30 is a universal solution, borrowed from the crawler gearbox, where it is mounted on the intermediate shaft. In wheeled gearboxes of HTZ tractors it can be adapted to the input shaft and used both on the first and on the fourth gear, depending on needs.
Replacement options:
-
In fourth gear can be used instead of:
-
gears 151.37.210-6 (z=30),
-
gears 151.37.210-5 (z=33).
-
-
In first gear can replace:
-
gear 151.37.111 (z=23).
-
In all cases, it is mated to the 150.37.110-3 gear (z=46x35) installed on the secondary shaft.
Important Note:
This solution is appropriate if you are willing to sacrifice the speed of the first or fourth gear, for example, if you rarely use these gears or use the tractor in conditions where reliability is more important than optimal speeds.
Application:
Suitable for tractors T-150, T-151, HTZ-17221 and other models of the Kharkov Tractor Plant.
-
Number of uses in a unit/technique 1 pcs
-
Catalog number 150.37.124-5
-
Number of teeth z30
-
Applicability Гусеничный
