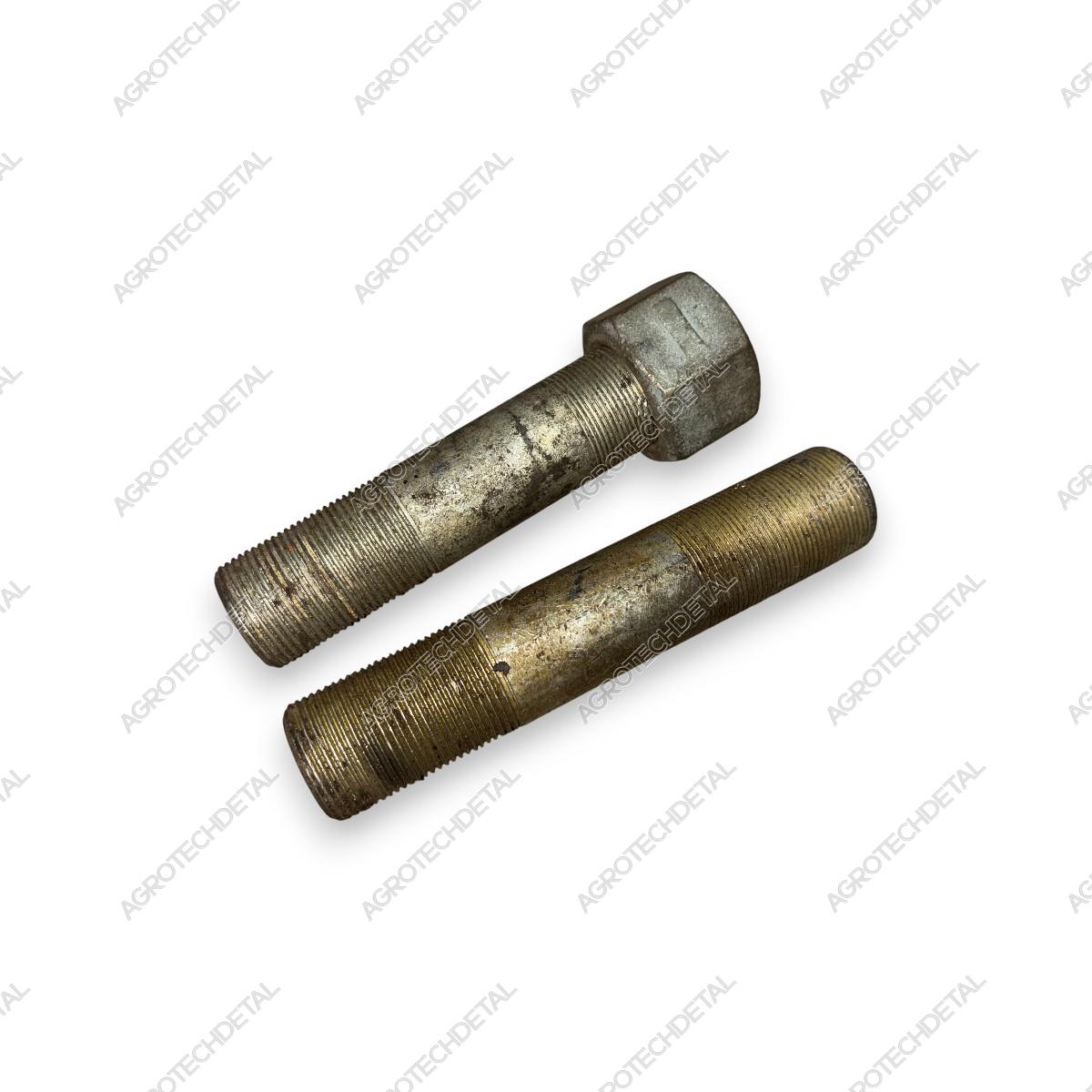

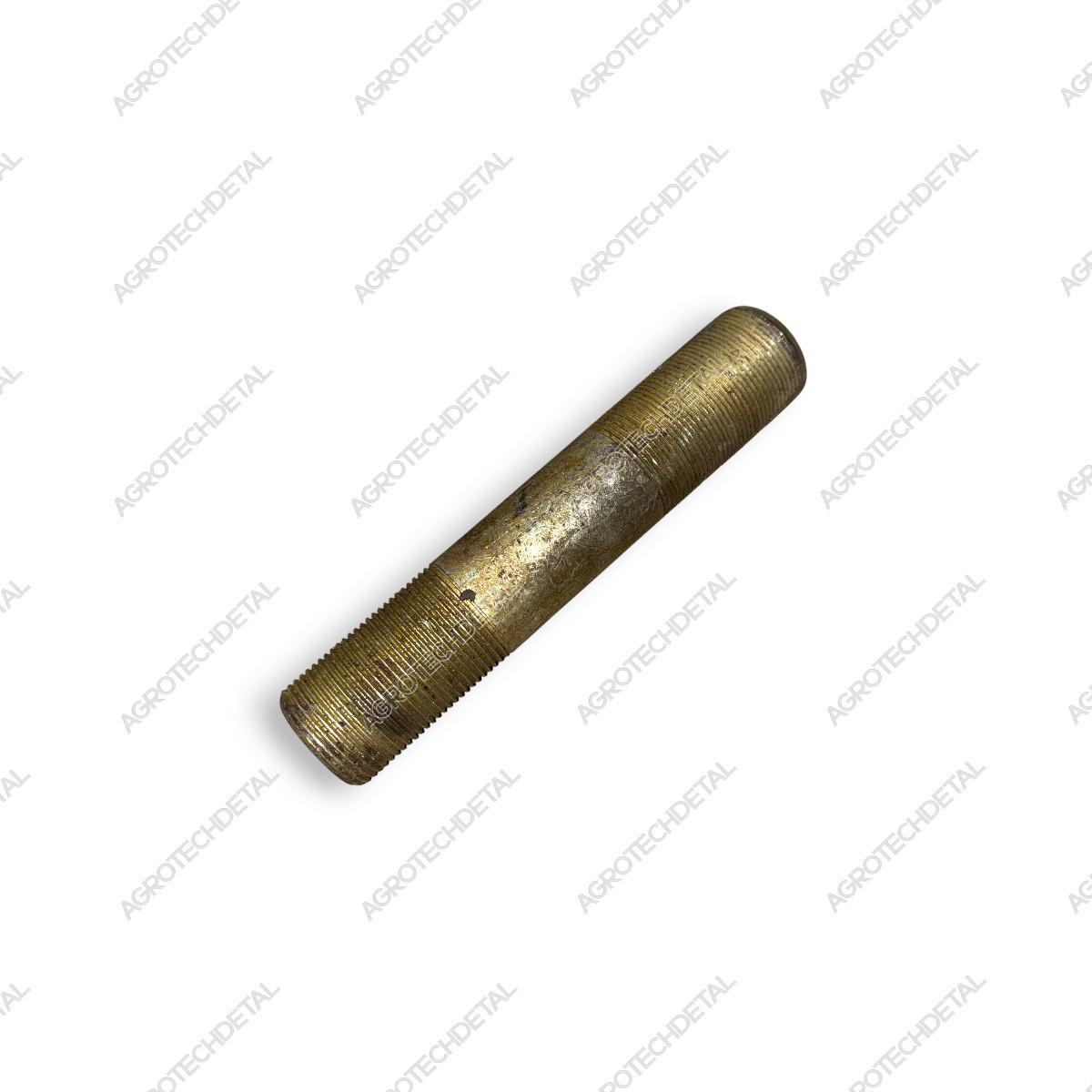

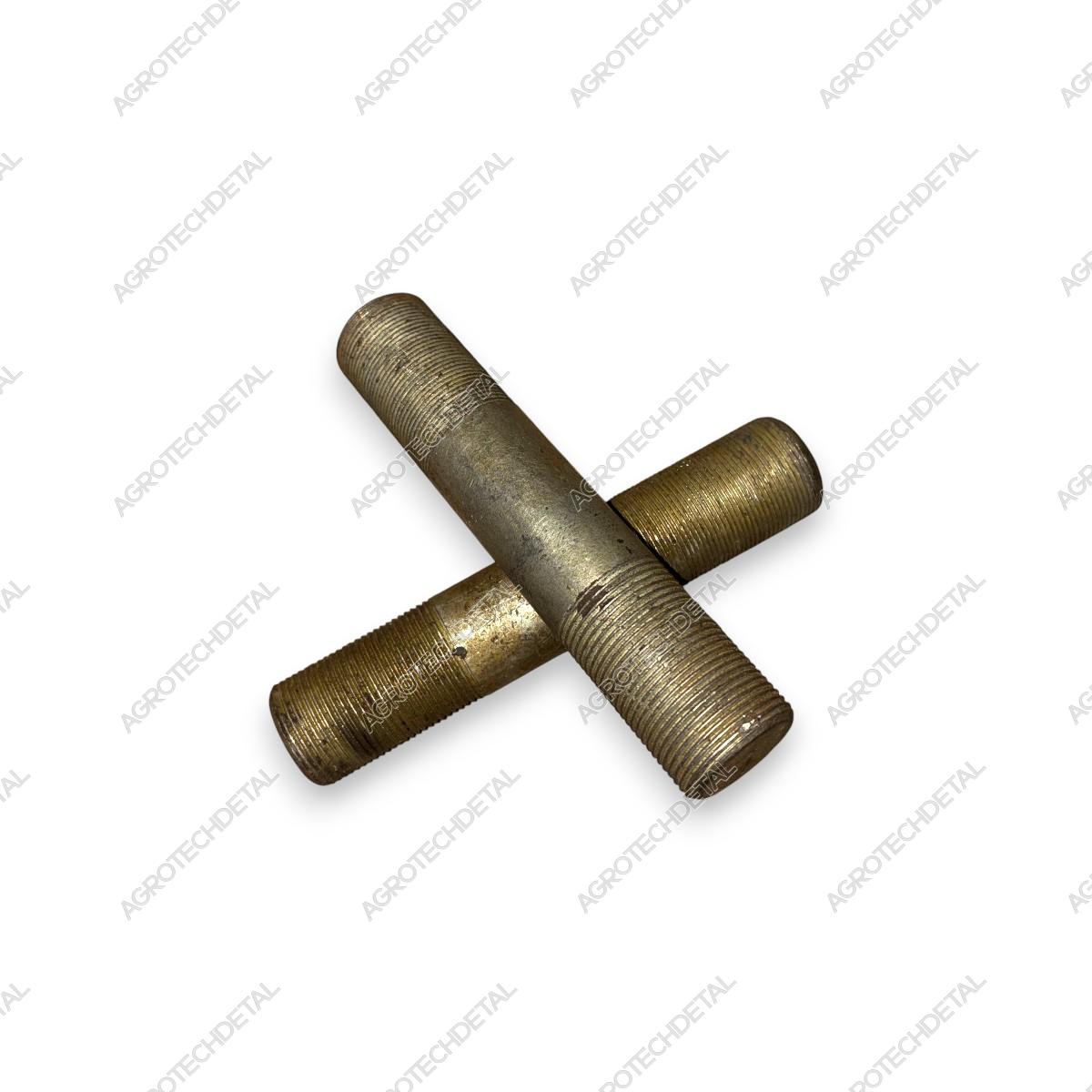

The stud 151.30.218 is used in the frame assembly of HTZ tractors and is intended to connect two parts of the rear hinge support 151.30.017-2, ensuring rigidity and reliability of the articulated joint structure of the semi-frames.
Used to tie the yoke 151.30.217-1B and support 151.30.119-1B, forming the support body. Works in tandem with nut 125.30.220A. The correct connection of these elements is important for the fixation and operation of the horizontal hinge tube located inside the support, and affects the stability of the frame hinge assembly.
Used in frame assembly 151.30.027-1, rear frame 151.30.012-1.
Used on tractors HTZ T-150, T-150K, T-151, T-151K, T-156 and other models with an articulated frame of a similar design.
Used to tie the yoke 151.30.217-1B and support 151.30.119-1B, forming the support body. Works in tandem with nut 125.30.220A. The correct connection of these elements is important for the fixation and operation of the horizontal hinge tube located inside the support, and affects the stability of the frame hinge assembly.
Used in frame assembly 151.30.027-1, rear frame 151.30.012-1.
Used on tractors HTZ T-150, T-150K, T-151, T-151K, T-156 and other models with an articulated frame of a similar design.
-
Chassis type колесный
-
Applicability by brand ХТЗ
-
Number of uses in a unit/technique 6 pcs
-
Installation location задняя опора шарнира
-
Catalog number 151.30.218
-
Node рама
-
Applicability Колесный
