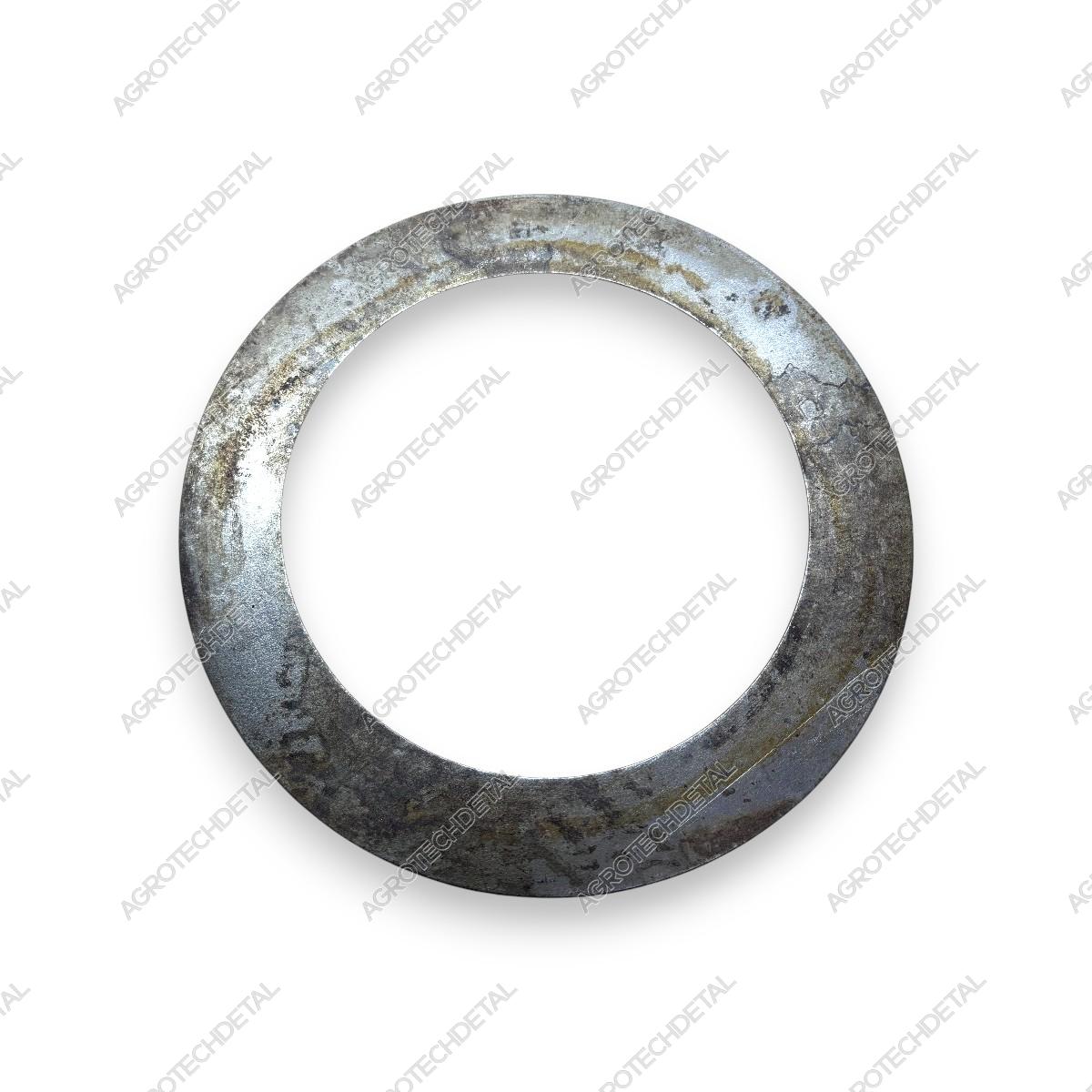

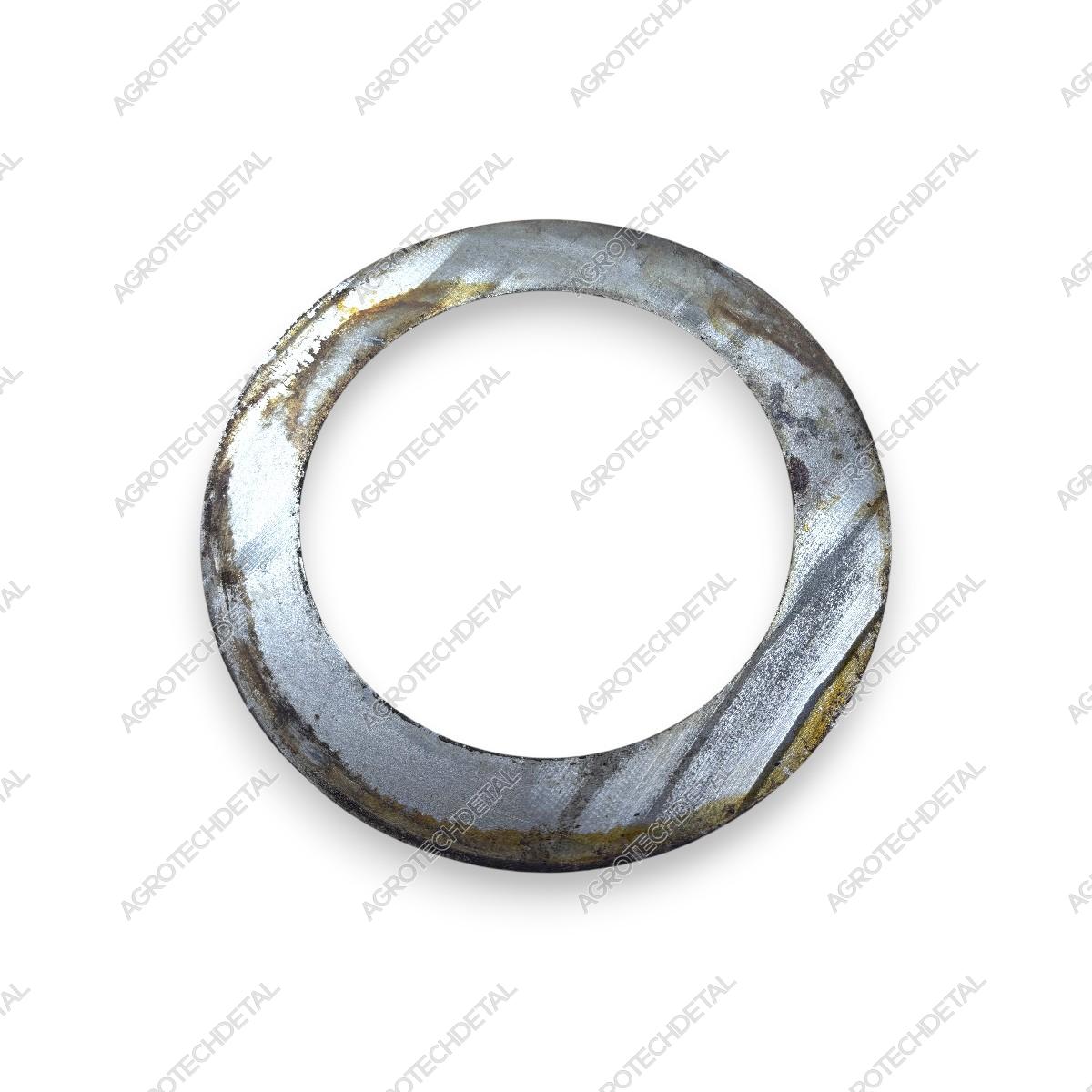

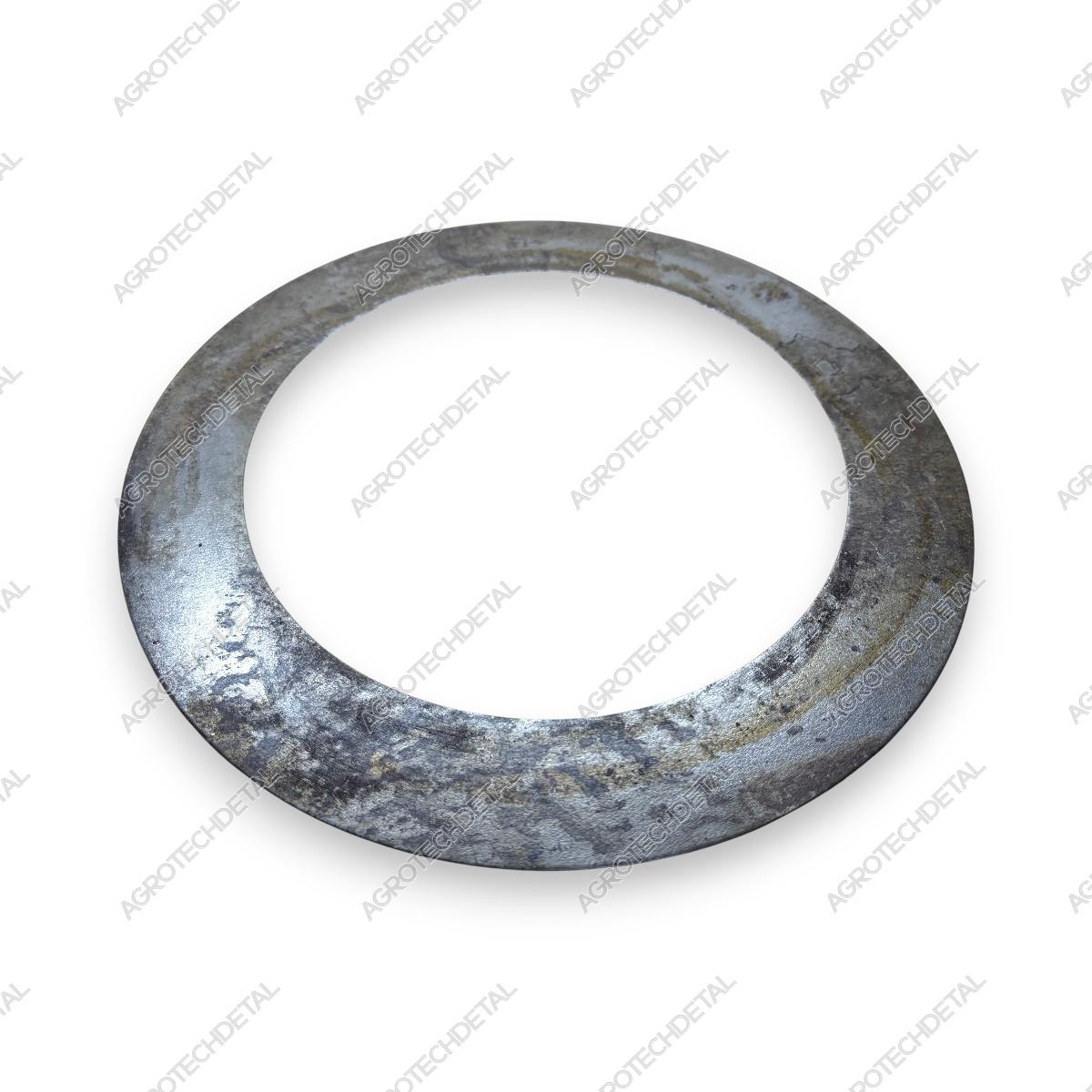

Spacer ring 151.30.162-1 is an adjusting part used in the vertical hinge assembly of the frame of HTZ tractors. Used to set precise axial clearance and ensure smooth, backlash-free operation of the hinge when turning the semi-frames.
Usually installed in quantities of 2 pieces, but in some cases 3 rings may be required to achieve the ideal gap.
The rings are mounted together with the pipe 151.30.046-3A (assembled - support with pipe 151.36.014A), which is part of the hinge body assembly 151.30.018-3 (“gun with ears”). In this assembly, the rings perform a fine adjustment function, ensuring proper tension and minimizing wear on the bushings and pivot pin.
The part is used in the frames of HTZ wheeled tractors, including models:
T-150, T-151, T-156, HTZ-17221, HTZ-17222, HTZ-242, HTZ-248 and other modifications with a similar vertical hinge unit.
Usually installed in quantities of 2 pieces, but in some cases 3 rings may be required to achieve the ideal gap.
The rings are mounted together with the pipe 151.30.046-3A (assembled - support with pipe 151.36.014A), which is part of the hinge body assembly 151.30.018-3 (“gun with ears”). In this assembly, the rings perform a fine adjustment function, ensuring proper tension and minimizing wear on the bushings and pivot pin.
The part is used in the frames of HTZ wheeled tractors, including models:
T-150, T-151, T-156, HTZ-17221, HTZ-17222, HTZ-242, HTZ-248 and other modifications with a similar vertical hinge unit.
-
Applicability by brand ХТЗ
-
Number of uses in a unit/technique 2 pcs
-
Installation location труба
-
Catalog number 151.30.162-1
-
Node рама
