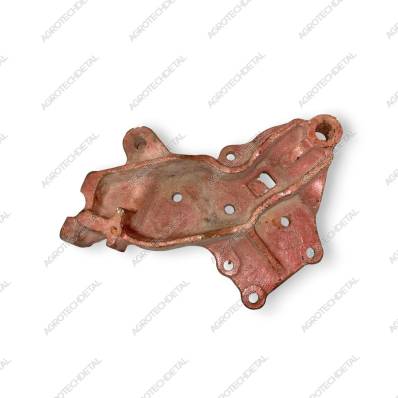

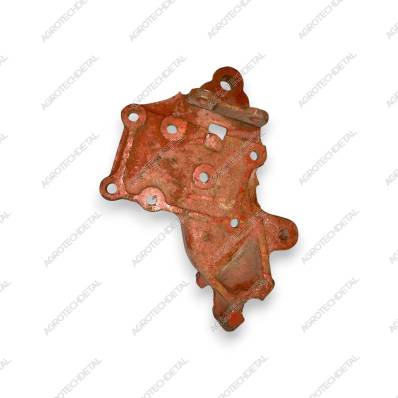

Bracket 151.30.135-3 (right) is an important design detail of the rear part of the frame of KhTZ wheeled tractors, such as T-150, T-151 and other models. Installed on the right rear side member and secured with rivets 20×55.10299, ensuring reliable fixation to the main structure.
A distinctive feature of the right bracket is a platform with seven holes, by which it can be easily distinguished from the left version - bracket 151.30.124-5A, which has only five holes. These two brackets work in tandem to form a rigid mount to the rear of the frame.
Used when restoring or repairing frames on KhTZ tractors with a wheelbase, especially in cases of major repairs or replacement of damaged elements.
A distinctive feature of the right bracket is a platform with seven holes, by which it can be easily distinguished from the left version - bracket 151.30.124-5A, which has only five holes. These two brackets work in tandem to form a rigid mount to the rear of the frame.
Used when restoring or repairing frames on KhTZ tractors with a wheelbase, especially in cases of major repairs or replacement of damaged elements.
-
Chassis type колесный
-
Applicability by brand ХТЗ
-
Number of uses in a unit/technique 1 pcs
-
Installation location лонжерон рамы задний
-
Catalog number 151.30.135-3
-
Node рама
