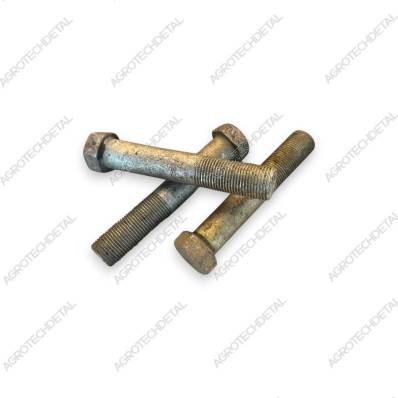

Bolt securing the bridge (M24x2x130) to the frame

The M24×2×130 axle mounting bolt is used in the frame assembly of HTZ wheeled tractors and is intended for reliable fastening of the front and rear axles to the tractor frame.

It is used in the amount of 8 pieces per tractor and passes through brackets 151.30.148-3 and 151.30.128-3, providing a strong connection between the axles and the frame and absorbing significant dynamic loads that arise during movement and operation of the equipment.

The original factory bolt was produced in two versions according to strength class - 7796 and 7795, which meets the HTZ requirements for the reliability of this critical connection.

Main bolt dimensions:

• thread diameter (d) - 24 mm;
• thread pitch - 2 mm;
• length (L) - 130 mm;
• smooth part length (L₀) - 54 mm;
• head height (H) - 13 mm;
• spanner size (S) - 32 mm.

Used on tractors HTZ T-150K, T-151K, T-156, HTZ-17221, HTZ-159K, HTZ-242K, HTZ-245K, HTZ-248K, HTZ-249K and other models with a similar frame design and axle mounting.
