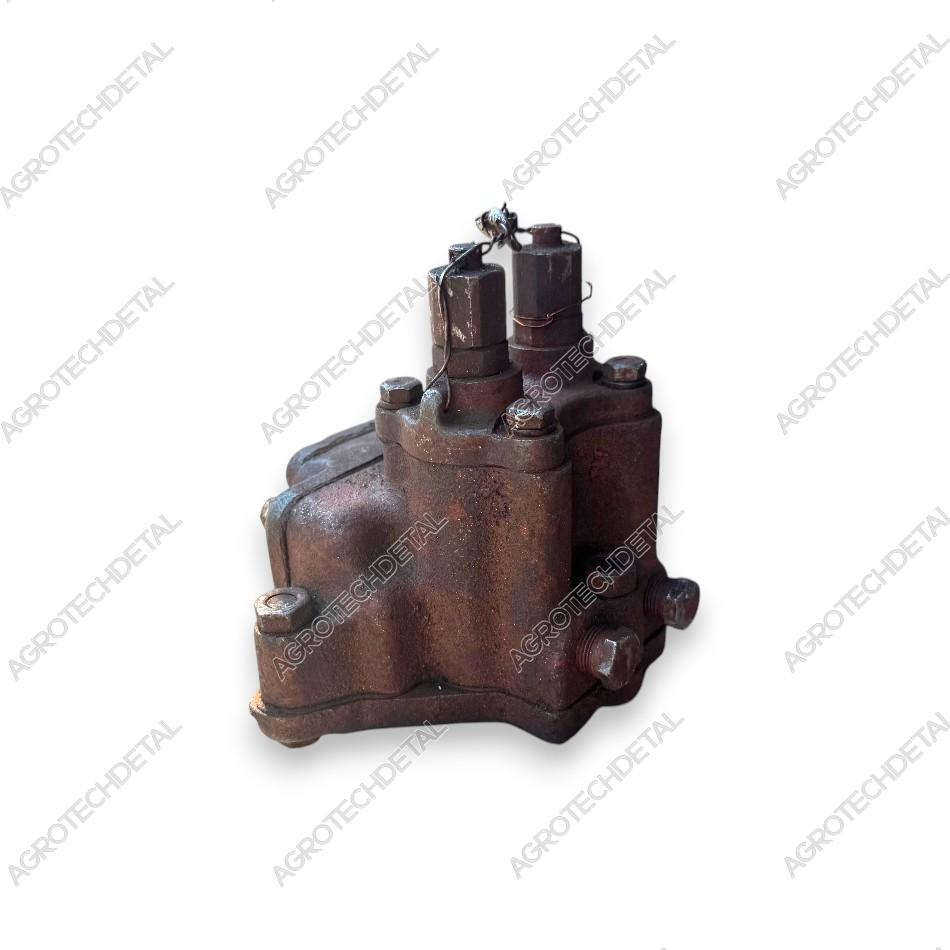

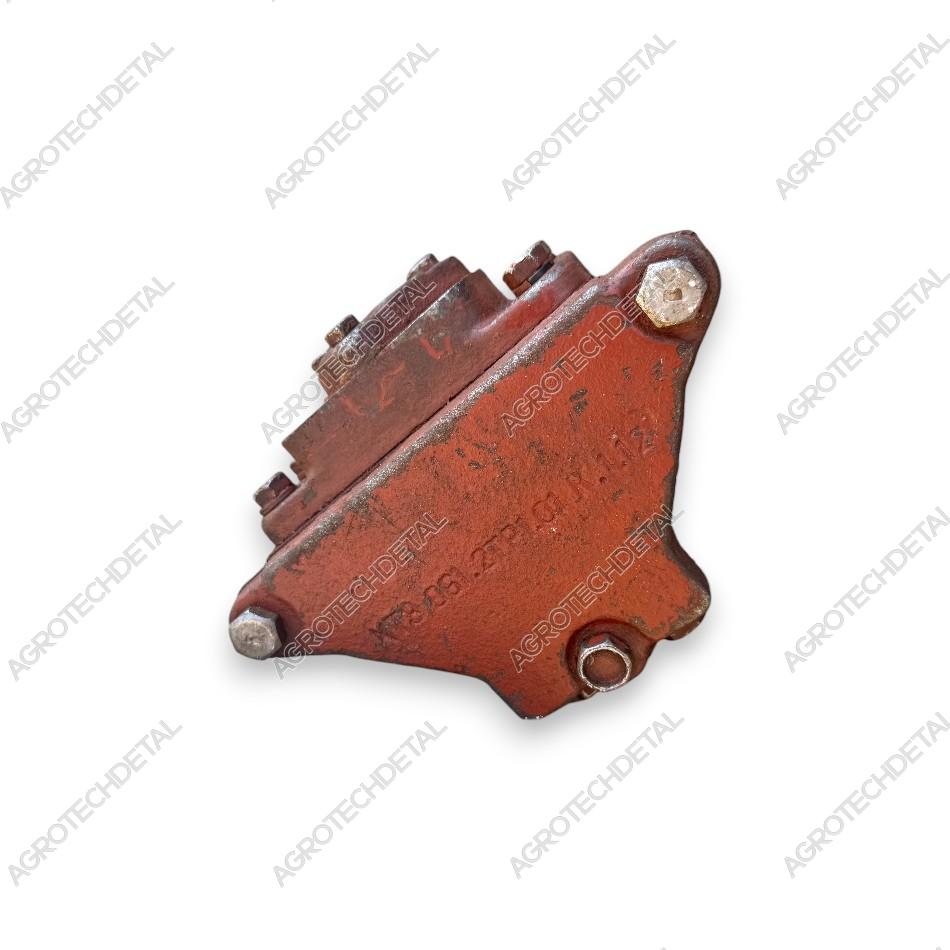

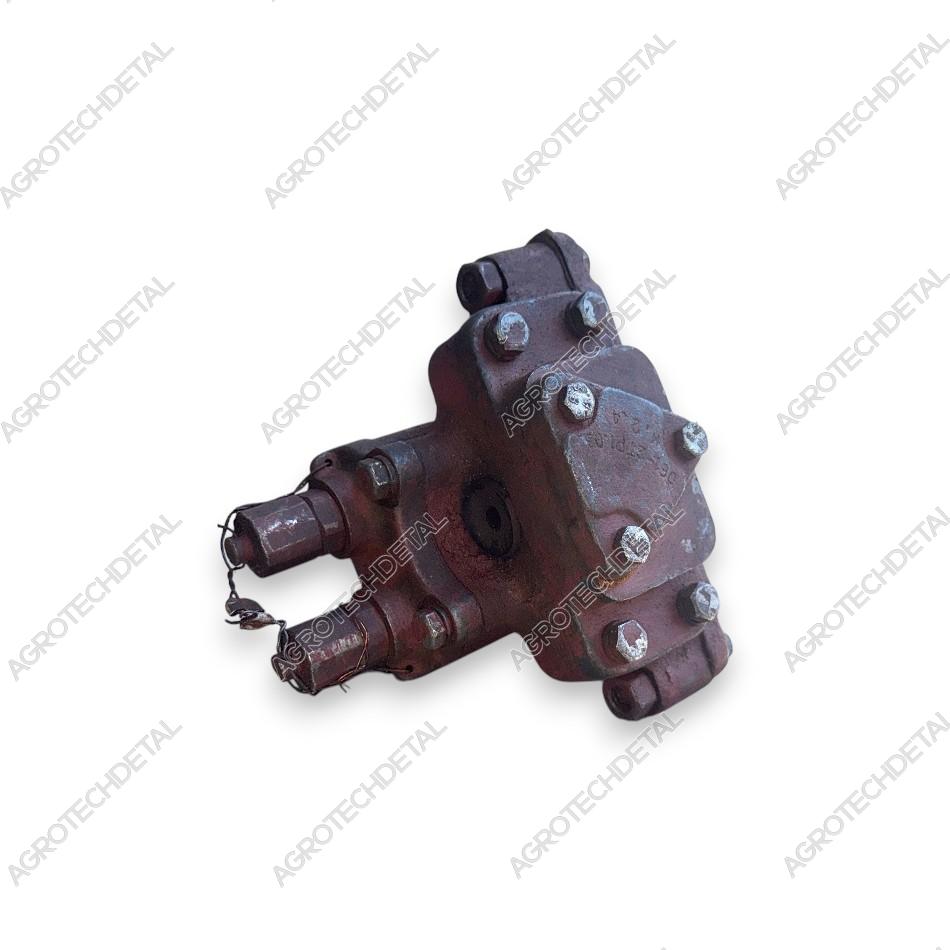

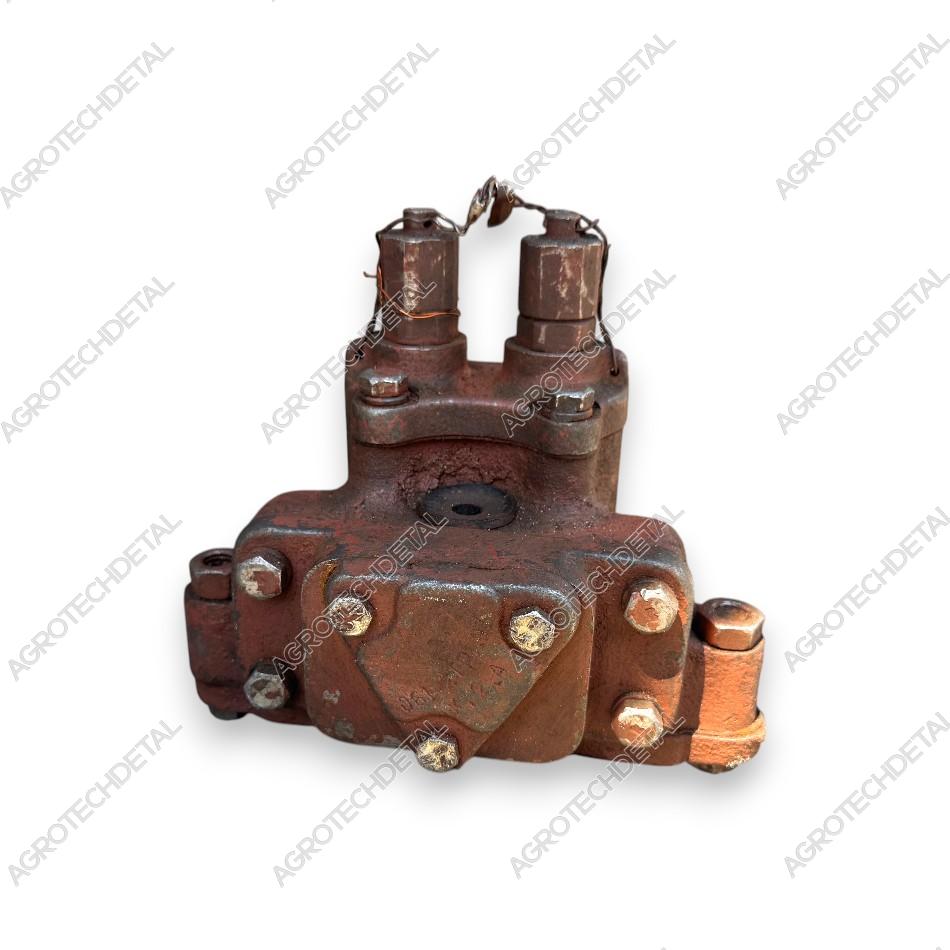

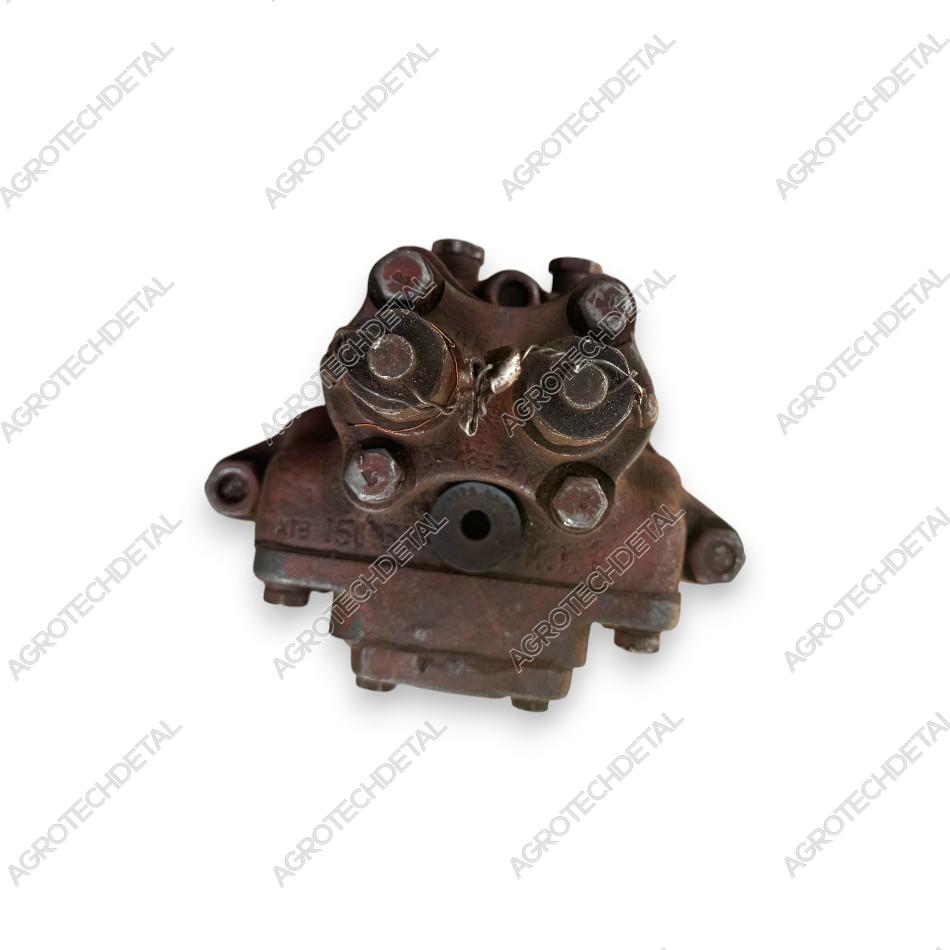

Bypass Valve Assembly 150.37.061-2 (Old-Style) is used in the transmission of the HTZ T-150G crawler tractor and is designed to operate within the transmission hydraulic system, controlling the distribution and bypass flow of oil according to the transmission operating mode.
The 150.37.061-2 Bypass Valve Assembly consists of: Housing 150.37.361-2, Plug 4-KG 3/8", Housing 150.37.073-2, Gasket 150.37.482-1, Side Cover 150.37.481, Valve 150.37.364, Stop 150.37.337, Valve Washer 150.37.365, Spring 150.37.366A, Adjusting Screw 150.37.363, Gasket 150.37.396, Cover 150.37.483-1, Washer 10.65G.05, Bolt M10-6g×30.66.019, Cap R75-051-B, and Wire PZh-1.6×250.
The valve mechanism, together with the spring and adjusting screw, ensures proper operation of the bypass valve assembly and helps maintain the required oil circulation parameters within the transmission hydraulic system. Proper condition of the assembly is essential for stable operation of the hydraulic system and transmission mechanisms.
The 150.37.061-2 is an old-style version used in transmissions of HTZ T-150G crawler tractors equipped with the corresponding transmission design.
-
Chassis type crawler
-
Applicability by brand HTZ
-
Number of uses in a unit/technique 1 pcs
-
Installation location checkpoint
-
Catalog number 150.37.061-2
-
Node gearbox
