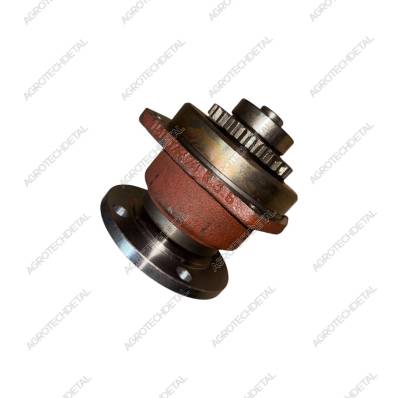

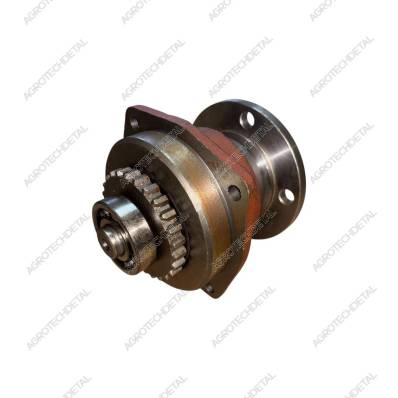

Bearing housing 151.37.076 assembled is one of the key components of the transfer case of HTZ tractors, ensuring reliable operation and transmission of torque from the transmission to the power take-off shaft.

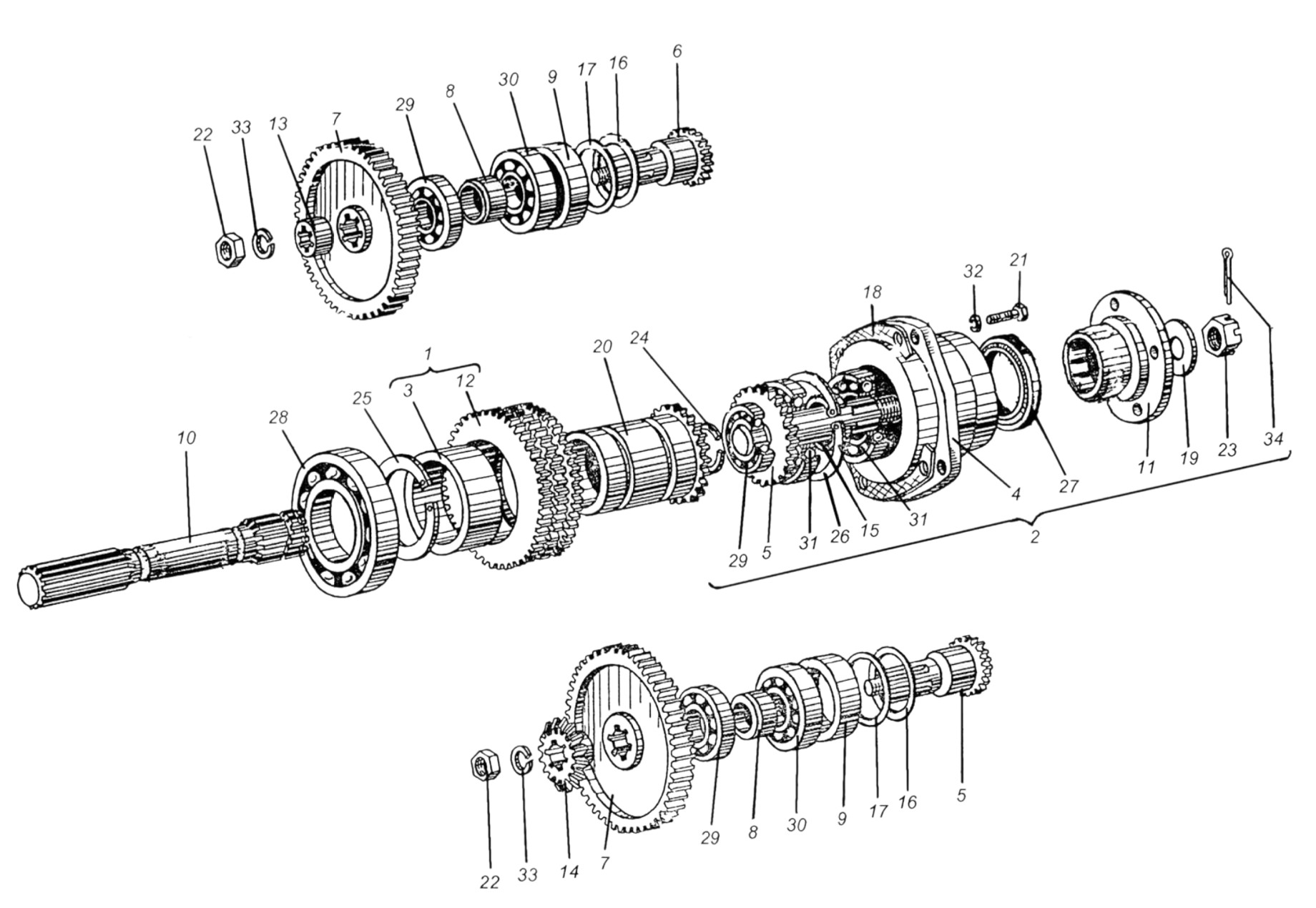

It consists of three main parts:
-
PTO drive shaft 151.37.376-1, transmitting rotation to subsequent elements of the system.
-
Flange coupling 151.37.400, used for connecting and fixing drive elements.
-
Glass 151.37.374, which serves as a housing in which bearings and sealing elements are located.
When assembling the unit, the following are additionally used:
-
Cuffs to protect against oil leaks,
-
Retaining and sealing rings,
-
Bearingsto ensure smooth rotation and relieve loads,
-
Nuts and fastenersfor fixing the structure.
Purpose: The bearing cup assembly holds the shaft and coupling in a rotating position, ensures alignment and correct distribution of loads, eliminating distortions. The reliability of the PTO operation directly depends on its condition.
Application: used in transfer cases of wheeled tractors HTZ T-150, T-151, T-156, HTZ-17221 and other models.
-
Chassis type колесный
-
Applicability by brand ХТЗ
-
Number of uses in a unit/technique 1 pcs
-
Catalog number 151.37.076
