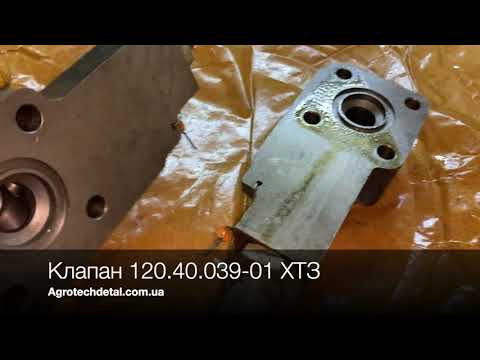

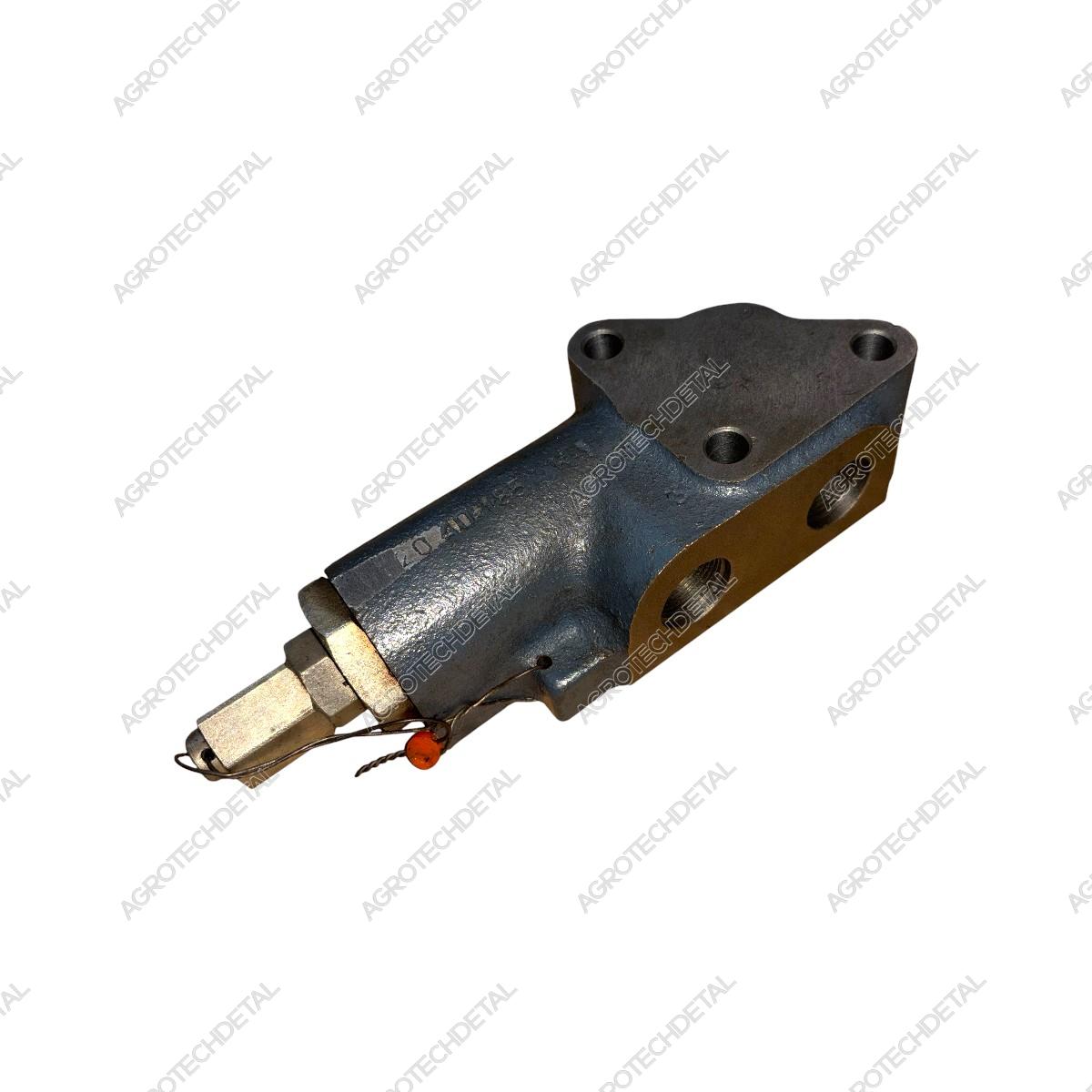

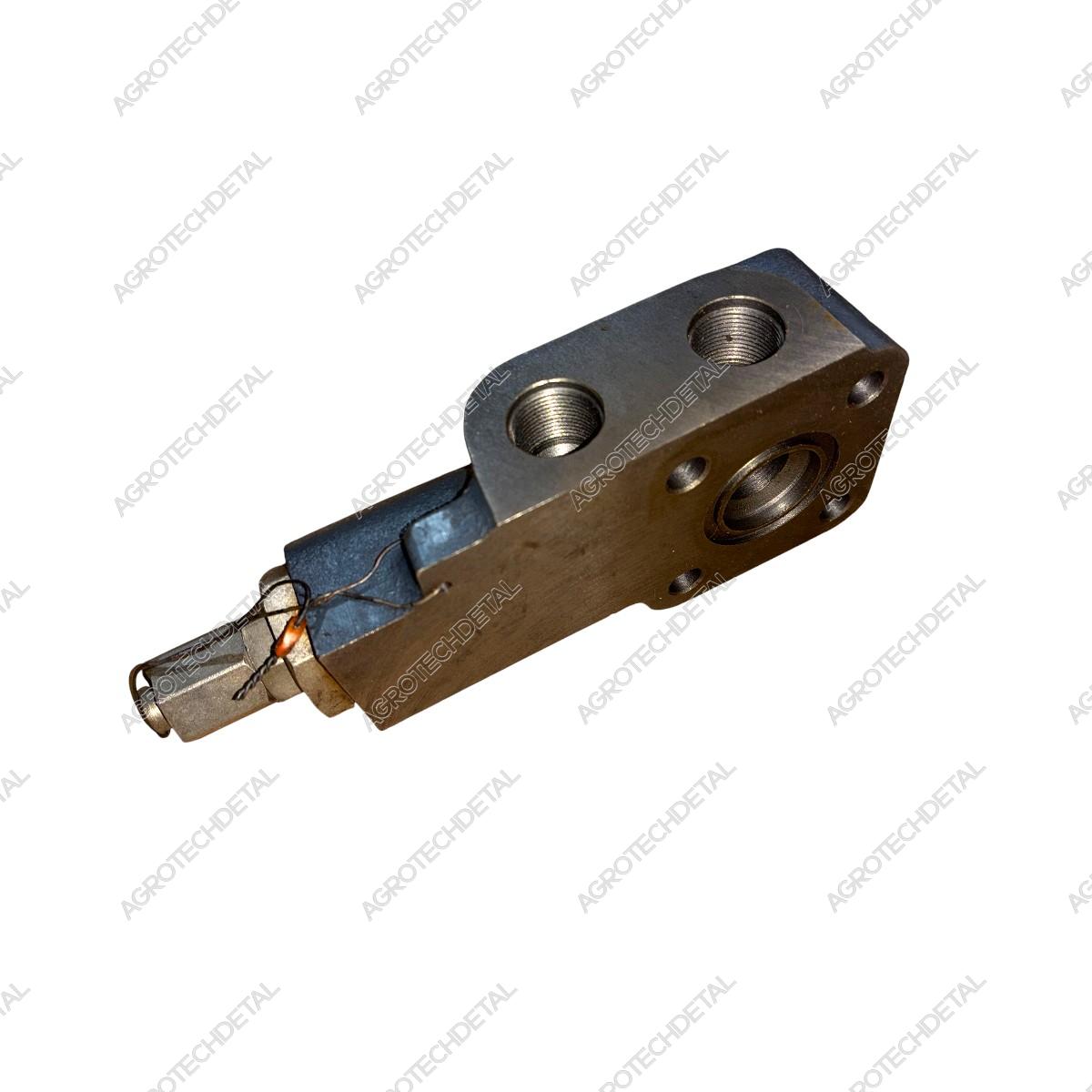

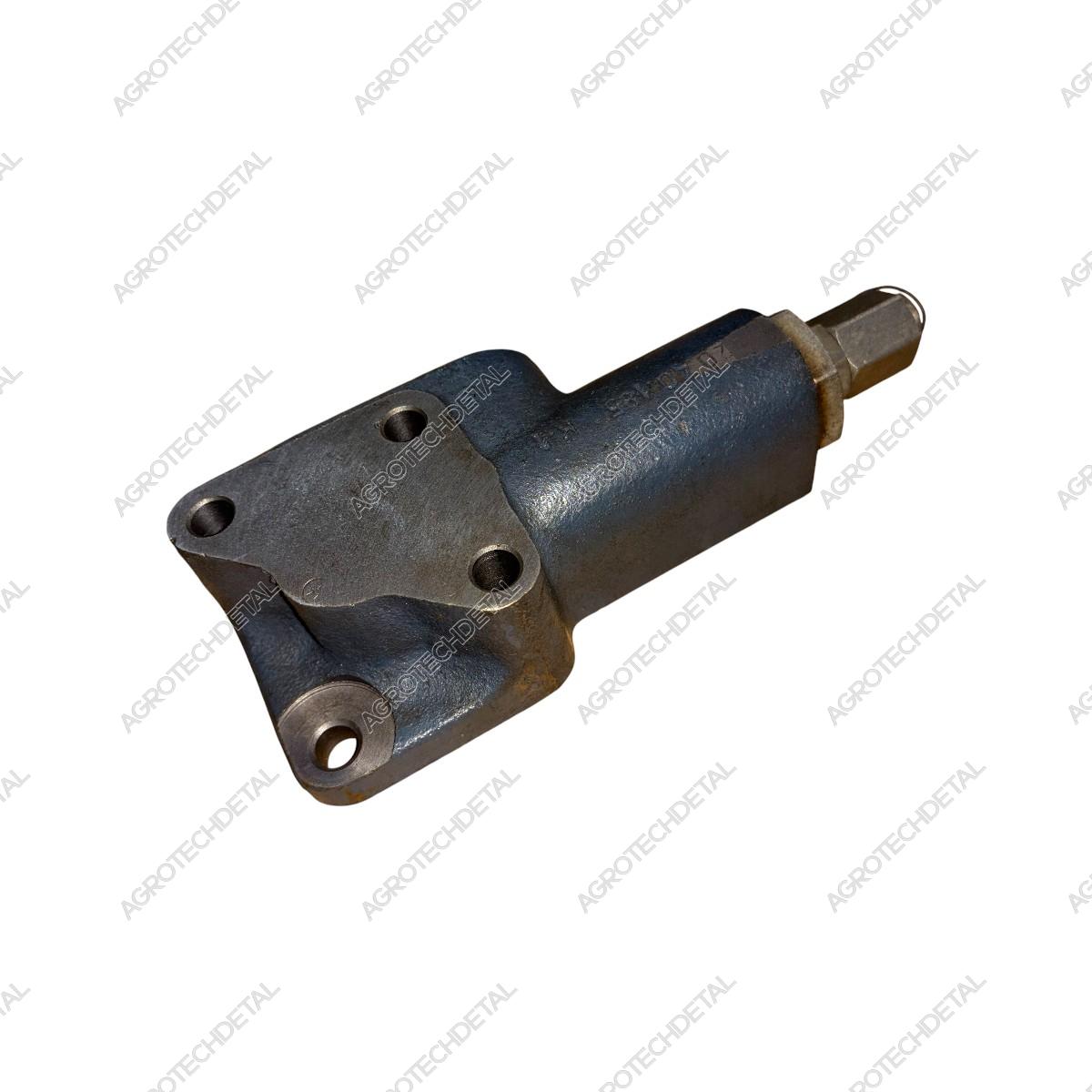

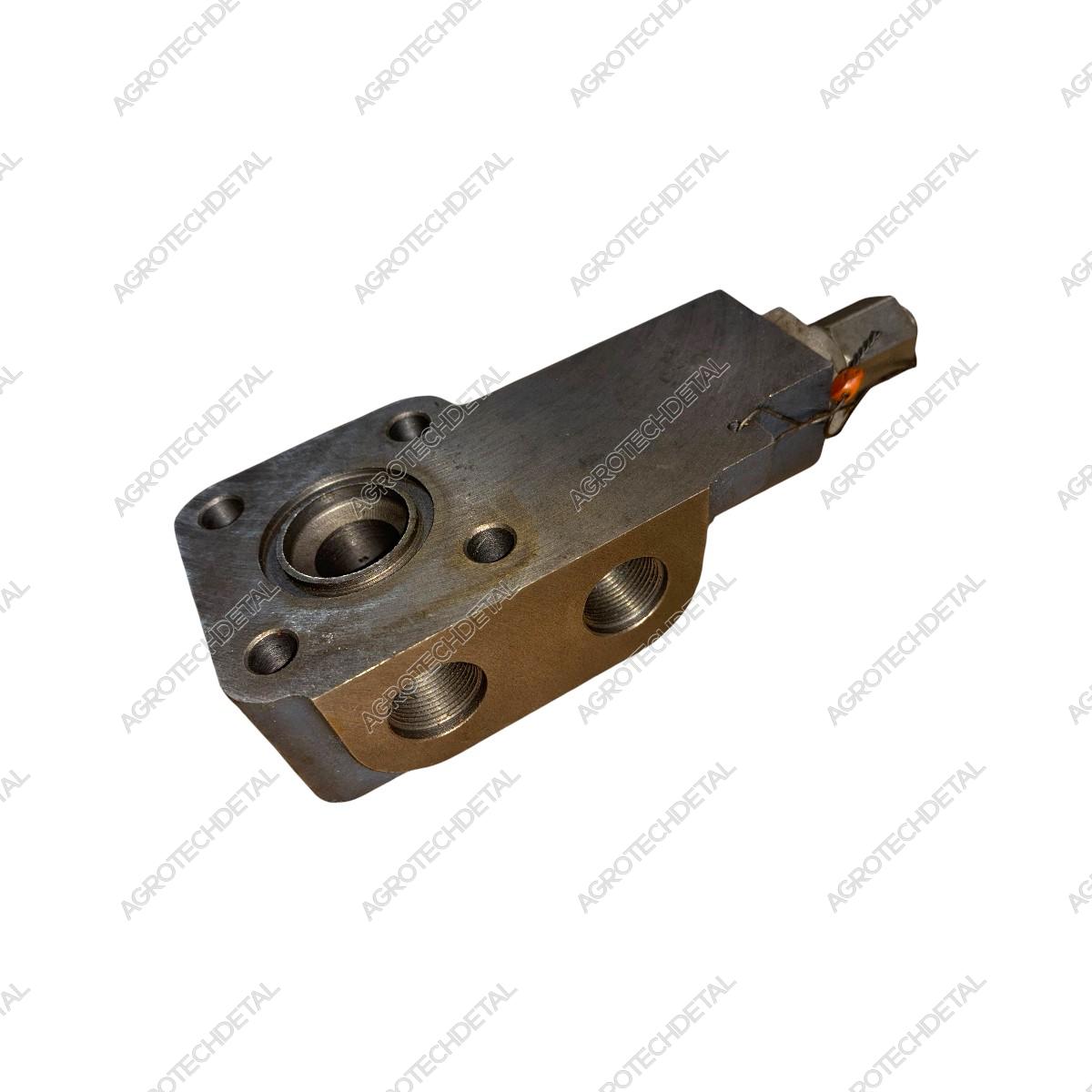

Safety valve 120.40.039-01 is an important element of the hydraulic steering system of HTZ tractors, designed to protect the hydraulic line from excess pressure. It automatically opens when critical pressure is reached, allowing oil to drain into the drain and preventing damage to the pump and other system elements.
This valve works in tandem with the NSh-32 pump, which supplies operating pressure to the steering system. The joint operation of these components ensures the stability and safety of the hydraulics, eliminating the risk of overload and pump failure.
The valve design includes: cap 151.40.194, nut 151.40.195, body 120.40.185-01, adjusting screw 120.40.188, washer 120.40.200, spring 120.40.224, valve seat 120.40.244, plug 120.40.245, ball socket 120.40.247, screw-in fitting 151.57.230. These parts provide precise pressure control, tight sealing and long service life.
Made from high quality steel, the valve can withstand significant hydraulic loads and vibrations. It is repairable, which allows maintenance without replacing the entire unit.
It is used on tractors T-150, T-151, T-156, HTZ-17221, HTZ-242, HTZ-248 and other models equipped with an NSh-32 pump as part of a power steering system.
This valve works in tandem with the NSh-32 pump, which supplies operating pressure to the steering system. The joint operation of these components ensures the stability and safety of the hydraulics, eliminating the risk of overload and pump failure.
The valve design includes: cap 151.40.194, nut 151.40.195, body 120.40.185-01, adjusting screw 120.40.188, washer 120.40.200, spring 120.40.224, valve seat 120.40.244, plug 120.40.245, ball socket 120.40.247, screw-in fitting 151.57.230. These parts provide precise pressure control, tight sealing and long service life.
Made from high quality steel, the valve can withstand significant hydraulic loads and vibrations. It is repairable, which allows maintenance without replacing the entire unit.
It is used on tractors T-150, T-151, T-156, HTZ-17221, HTZ-242, HTZ-248 and other models equipped with an NSh-32 pump as part of a power steering system.
-
Number of uses in a unit/technique 1 pcs
-
Catalog number 120.40.039-01
-
Node рулевое управление
