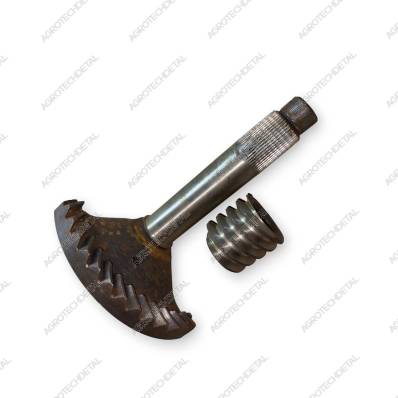

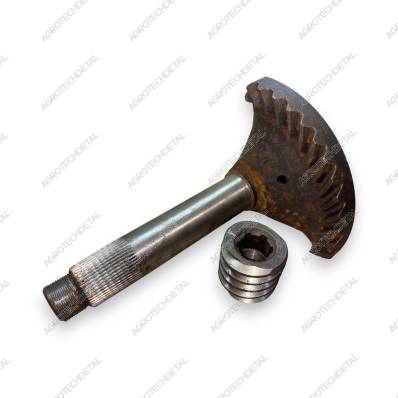

The power steering worm gear 125.40.083 is a key element of the power steering of HTZ tractors, ensuring the conversion of the rotational movement of the steering wheel into the translational movement of the steering rod. The kit consists of two main parts:
The worm pair is located inside the steering gear housing 151.40.051-1 and operates under constant load conditions, which requires high manufacturing precision and good lubrication to increase service life.
This pair is used in the steering of tractors HTZ T-150, T-150K, HTZ-17221, T-156, T-151K and other models equipped with power steering. Reliability and simplicity of design make it a widely used and sought-after component in HTZ technology.
- Worm 125.40.104 - installed on the steering gear shaft 151.40.204-2 and located inside the steering gear housing.
- Sector 125.40.105 - mounted on the side of the housing and closed with a special crankcase cover. It engages with the worm, transmitting force to the turning mechanism.
The worm pair is located inside the steering gear housing 151.40.051-1 and operates under constant load conditions, which requires high manufacturing precision and good lubrication to increase service life.
This pair is used in the steering of tractors HTZ T-150, T-150K, HTZ-17221, T-156, T-151K and other models equipped with power steering. Reliability and simplicity of design make it a widely used and sought-after component in HTZ technology.
-
Applicability by brand ХТЗ
-
Number of uses in a unit/technique 1 pcs
-
Installation location ГУР
-
Catalog number 125.40.104 / 125.40.105 / 125.40.083
-
Node рулевое управление
