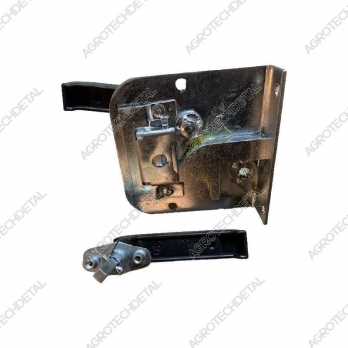

Door lock 150.45.070-1 is a standard door mechanism for the cabin of HTZ tractors, ensuring reliable closing and locking of the door. In catalogs it is also found under the designations 150.45.070-1A and 150.45.070-1B, which corresponds to its modifications, which are completely interchangeable with each other.
The interior of the lock installed in the cab includes:
— internal lock handle 150.45.087
— lock body assembly 150.45.062-1
— lock spring 150.45.271-1
— spring 150.45.293-1
— locking bracket 150.45.280
— cam 150.45.340-1
— rod 150.45.266-1
— lock cover 150.45.339
— spring cotter pin 150.45.404
— washer 7.38.117
as well as a set of mounting screws and washers necessary for assembly and precise fixation of the mechanism.
The outer part of the castle includes:
— external handle 150.45.032
— handle flange assembly 150.45.077
— fasteners (screws, washers)
The lock is installed in door 150.45.012-1 and other doors of HTZ cabins that have a similar seat. The part fully complies with the design requirements of the cabin, is reliable and maintainable, and is also supported by factory components to restore all elements of the mechanism.
Used on HTZ tractors: T-150, T-151, T-156, HTZ-17221, HTZ-242, HTZ-248 and other models with a similar cabin.
The interior of the lock installed in the cab includes:
— internal lock handle 150.45.087
— lock body assembly 150.45.062-1
— lock spring 150.45.271-1
— spring 150.45.293-1
— locking bracket 150.45.280
— cam 150.45.340-1
— rod 150.45.266-1
— lock cover 150.45.339
— spring cotter pin 150.45.404
— washer 7.38.117
as well as a set of mounting screws and washers necessary for assembly and precise fixation of the mechanism.
The outer part of the castle includes:
— external handle 150.45.032
— handle flange assembly 150.45.077
— fasteners (screws, washers)
The lock is installed in door 150.45.012-1 and other doors of HTZ cabins that have a similar seat. The part fully complies with the design requirements of the cabin, is reliable and maintainable, and is also supported by factory components to restore all elements of the mechanism.
Used on HTZ tractors: T-150, T-151, T-156, HTZ-17221, HTZ-242, HTZ-248 and other models with a similar cabin.
-
Applicability by brand ХТЗ
-
Number of uses in a unit/technique 2 pcs
-
Installation location дверь
-
Catalog number 150.45.070-1 / 150.45.070-1А / 150.45.070-1Б
-
Node кабина
