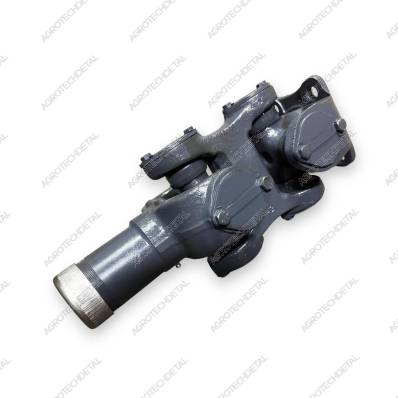

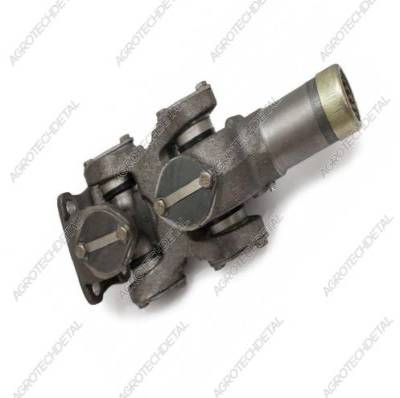

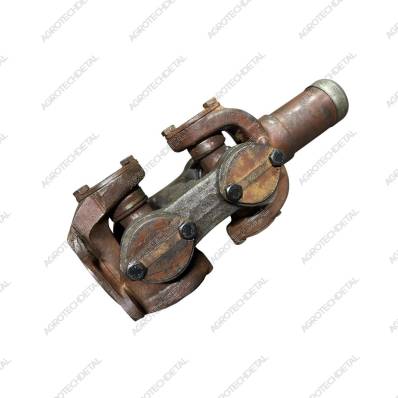

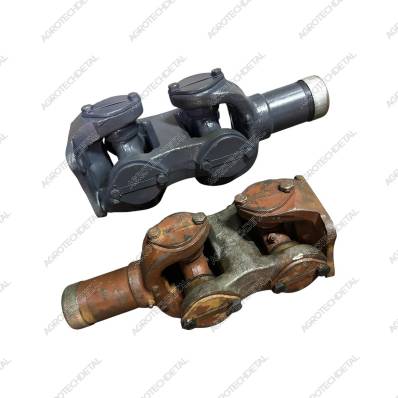

Double fork 151.36.023-2 is one of the key elements of the cardan transmission of KhTZ tractors, ensuring the transmission of torque between the transfer case and the drive axle when changing the angular positions of the units.
The assembled fork works together with the cardan flange 125.36.123-5, which is attached to the shaft 151.37.310-1A using bolts. Two 150.36.013A crosspieces are installed between the fork and the flange, providing flexibility and compensation for angular displacements when transmitting torque. The second side of the fork is connected to the sliding fork 150.36.018 (or its lightweight version 150.36.142-4) - it is this that includes the shaft 151.36.104 with a splined connection that allows movement to be transmitted when the length of the cardan changes.
For reliable fixation of elements in the assembly, the following are used:
— support plate A62.02.006-05,
— locking plate A62.02.007-04,
— bolt BNPM10x1x20,
which are included in the universal joint repair kit, which facilitates maintenance and restoration of the unit.
Double fork 151.36.023-2 is made of durable alloy steel, has a reinforced structure and is designed for high dynamic loads arising during transmission operation.
It is used in cardan transmissions of tractors KhTZ T-150, T-151, T-156, KhTZ-17221, KhTZ-242, KhTZ-248 and other models, ensuring smooth and reliable operation of the transmission even during intensive use.
The assembled fork works together with the cardan flange 125.36.123-5, which is attached to the shaft 151.37.310-1A using bolts. Two 150.36.013A crosspieces are installed between the fork and the flange, providing flexibility and compensation for angular displacements when transmitting torque. The second side of the fork is connected to the sliding fork 150.36.018 (or its lightweight version 150.36.142-4) - it is this that includes the shaft 151.36.104 with a splined connection that allows movement to be transmitted when the length of the cardan changes.
For reliable fixation of elements in the assembly, the following are used:
— support plate A62.02.006-05,
— locking plate A62.02.007-04,
— bolt BNPM10x1x20,
which are included in the universal joint repair kit, which facilitates maintenance and restoration of the unit.
Double fork 151.36.023-2 is made of durable alloy steel, has a reinforced structure and is designed for high dynamic loads arising during transmission operation.
It is used in cardan transmissions of tractors KhTZ T-150, T-151, T-156, KhTZ-17221, KhTZ-242, KhTZ-248 and other models, ensuring smooth and reliable operation of the transmission even during intensive use.
-
Chassis type колесный
-
Applicability by brand ХТЗ
-
Number of uses in a unit/technique 1 pcs
-
Installation location вал кардана 151.36.104 / вал 151.37.310-1A
-
Catalog number 151.36.023-2
-
Node карданная передача
