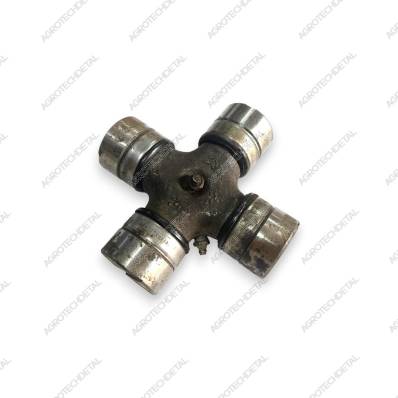

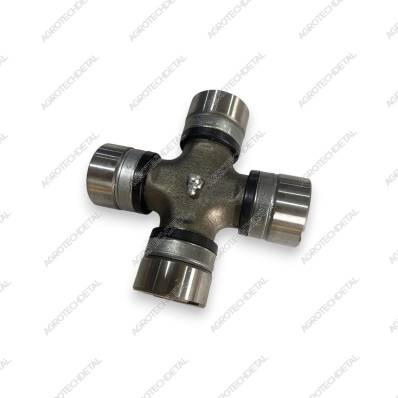

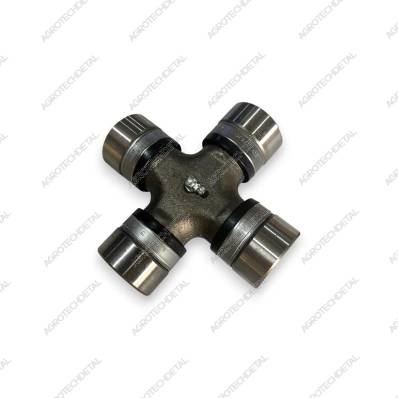

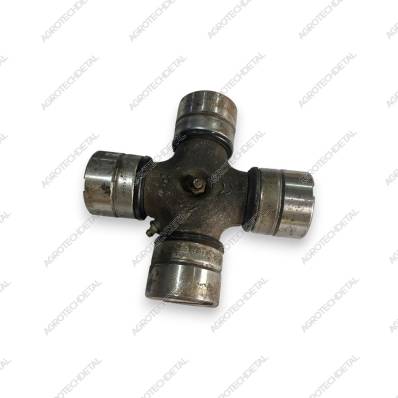

Cardan cross 150.36.013A is an assembly unit for a cardan transmission that ensures the transmission of torque between shafts located at an angle to each other while maintaining smooth and reliable rotation. The part is characterized by high strength and durability, designed to withstand significant loads typical for transmissions of HTZ tractors.
Crosspiece 150.36.013A is supplied fully assembled, which includes:
Used as part of the following units:
Crosspiece 150.36.013A is supplied fully assembled, which includes:
- Cardan cross - A62.05.001 / 150.36.115-1A (main body of the cross)
- Safety valve - A62.02.200 / 150.36.016
- Grease nipple - A62.03.100 / 700.22.08.040 (for periodic lubrication)
- Rubber-coated clips - A62.05.100 / 150.36.015 - 4 pcs.
- O-rings - A62.05.002 / 150.36.104 - 4 pcs.
- Bearings with cup assembly - 804707-K4 / 150.36.014 - 4 pcs.
Used as part of the following units:
- Front cardan - 151.36.011
- Double fork - 151.36.023-2
- Double fork - 151.36.016
-
Applicability by brand ХТЗ
-
Number of uses in a unit/technique 6 pcs
-
Installation location вилка двойная / фланец / вилка скользящая
-
Catalog number 150.36.013А
-
Node карданная передача
