Right Cup 151.36.116 (Rear Support)
Right Cup 151.36.116 is used in the rear support assembly of HTZ tractors and is one of the main components of Rear Support Assembly 151.36.013-3.

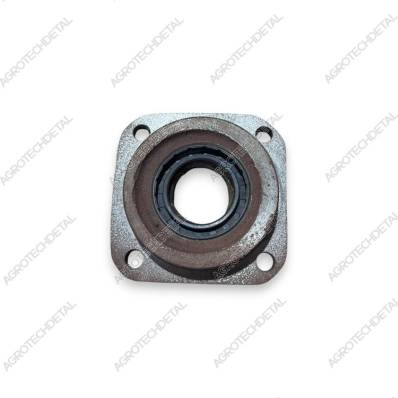

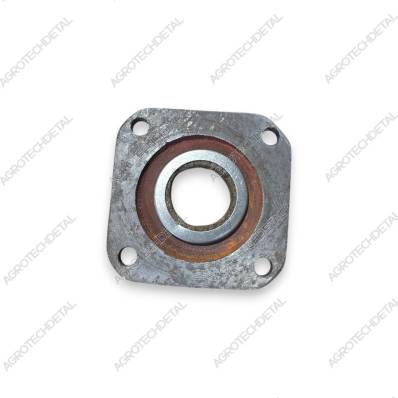

The cup has a square shape and four service holes used for mounting the part to the support housing and for servicing the assembly’s lubrication system. The following components are installed in these holes: Special Bolt 151.36.117 with Grease Fitting 2.3.90.19853, Valve 151.36.015, Bolt M12×35.7796, and Grease Fitting 2.3.90.19853 with Protective Cap 150.41.299.
For sealing and servicing the assembly, the right cup can be supplied with Oil Seal 1.1-50×70-4.8752, Washer 54.02.522, Oil Seal 125.36.125, and Oil Seal Housing 125.36.126. These components are included in the corresponding rear support repair kit, which is also available from our store.
Right Cup 151.36.116 ensures proper positioning and protection of the mating components within the rear support assembly, while the integrated lubrication system helps reduce wear and extend the service life of the assembly.
The part is used in the rear support assembly of HTZ T-150K, T-151K, T-156, HTZ-17221, and other tractor models equipped with a similar rear support design.
-
Chassis type wheeled
-
Applicability by brand HTZ
-
Number of uses in a unit/technique 1 pcs
-
Installation location rear support
-
Catalog number 151.36.116
-
Node cardan transmission
