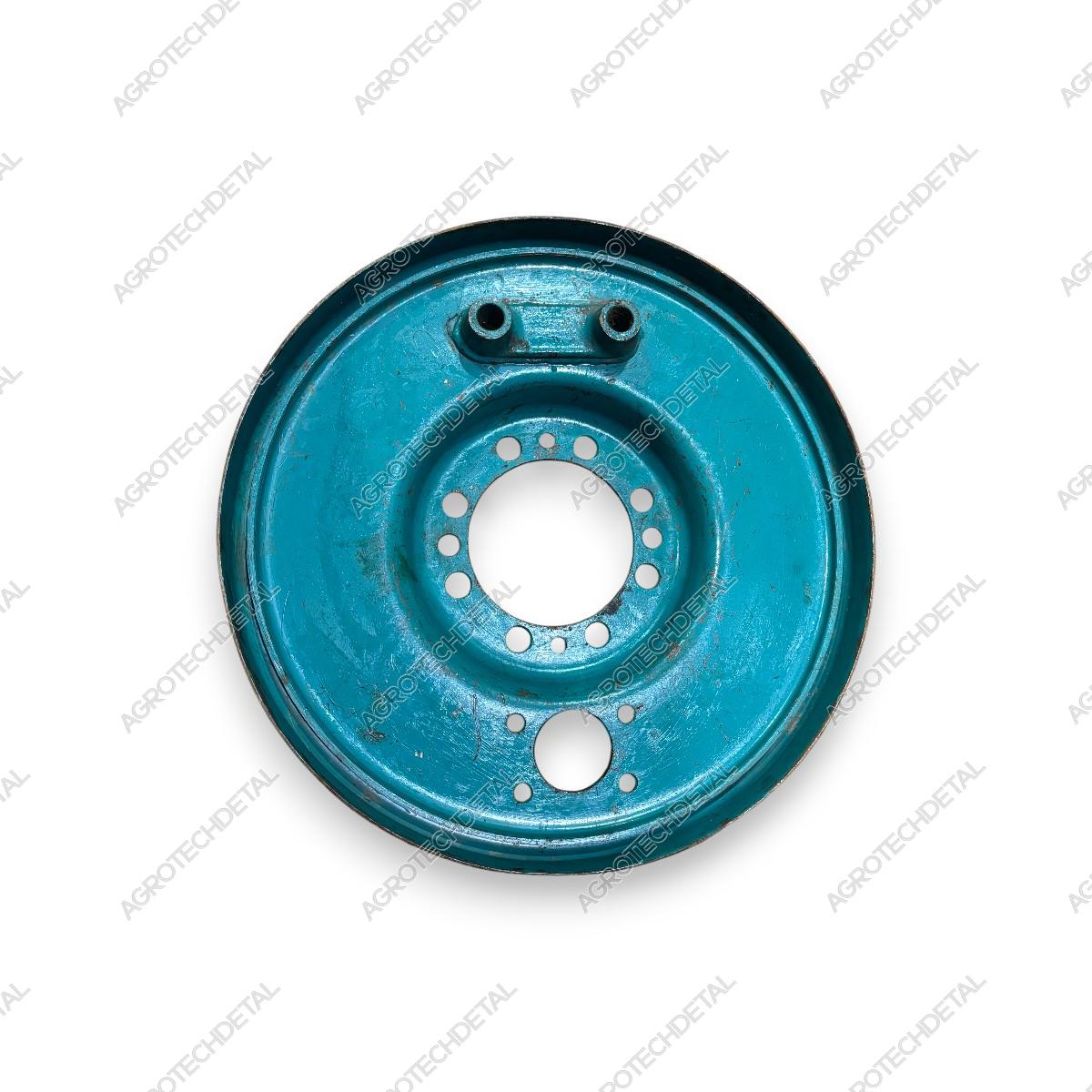

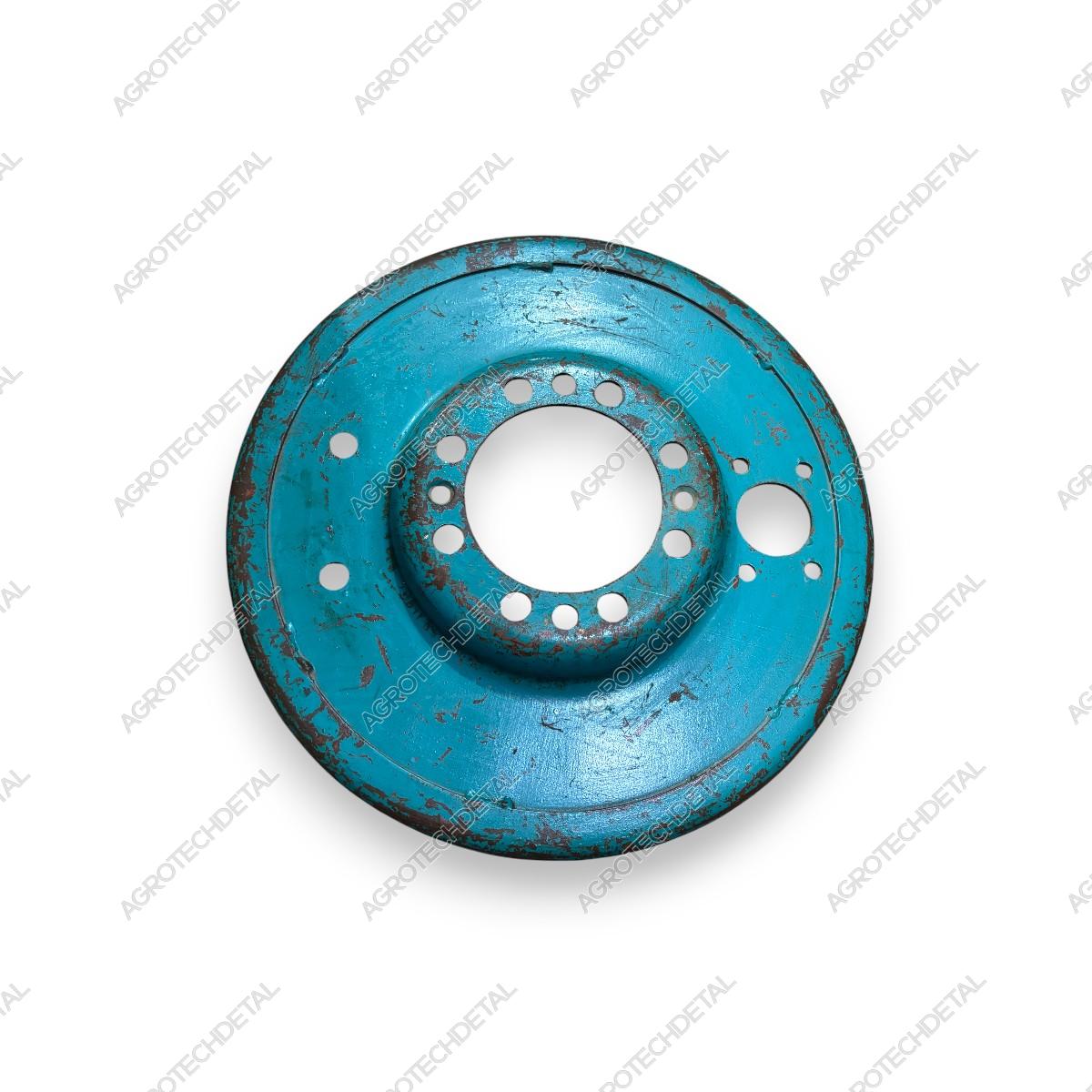

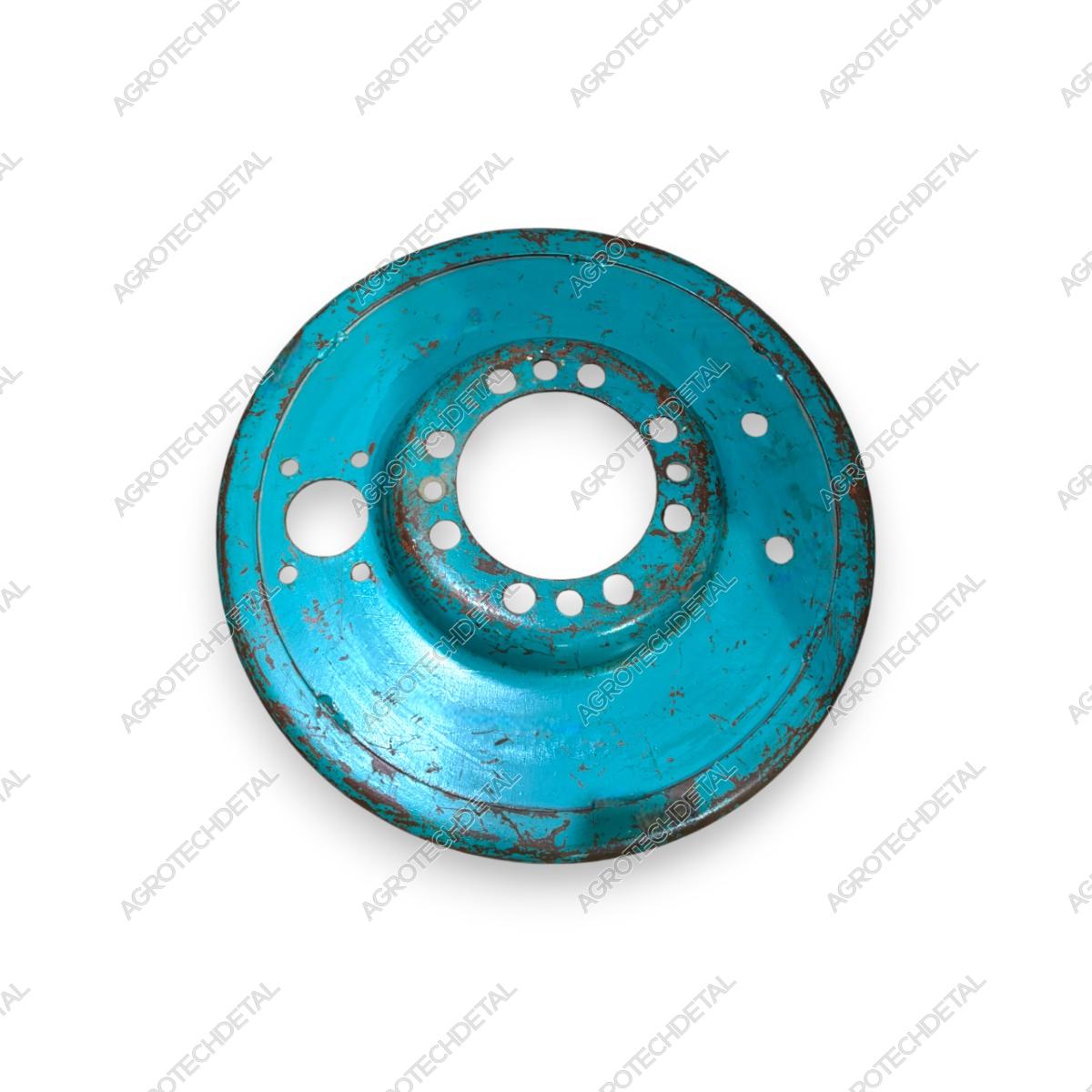

Shield 151.38.050-1A (old model, solid) is used in the wheel brake assembly of the final drive of HTZ tractors. The part is designed to close and protect the brake mechanism located inside the brake drum 151.38.114-1.
The main elements of the brake assembly are located under the shield: brake pads 151.38.049, left expansion knuckles 151.38.208 and right 151.38.209, adjusting ratchet, shoe axle and other components. The shield prevents dirt, dust and moisture from entering the brake mechanism, ensuring its stable and durable operation.
It is used on tractors HTZ T-150K, T-151K, T-156, as well as on other wheeled HTZ models with a similar design of the final drive and wheel brake.
The main elements of the brake assembly are located under the shield: brake pads 151.38.049, left expansion knuckles 151.38.208 and right 151.38.209, adjusting ratchet, shoe axle and other components. The shield prevents dirt, dust and moisture from entering the brake mechanism, ensuring its stable and durable operation.
It is used on tractors HTZ T-150K, T-151K, T-156, as well as on other wheeled HTZ models with a similar design of the final drive and wheel brake.
-
Chassis type колесный
-
Applicability by brand ХТЗ
-
Number of uses in a unit/technique 4 pcs
-
Installation location колесный тормоз / бортовой редуктор
-
Catalog number 151.38.050-1А
-
Node тормоз колесный
