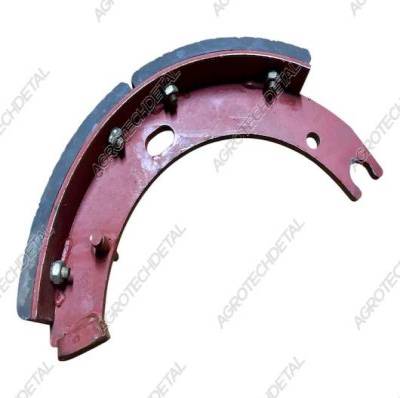

The wheel brake shoe is a massive part of the brake mechanism, made of high-strength cast iron, C-shaped and equipped with eight holes for attaching brake linings 125.38.105. The linings are fastened using M10×32.17475 screws, 10.65G.6402 washers and M10.5915 nuts, which ensures reliable fixation of the friction elements and their tight fit to the working surface of the drum.
The block works in tandem with a brake expansion cam - left or right (151.38.208, 151.38.209, 151.38.209-4, 151.38.209-4-01), which, through a mechanical drive, expands the brake pads, pressing them against the inner surface of the brake drum 151.38.114-1, thereby creating a brake effort.
This block is the most important element of the brake system, providing effective deceleration and fixation of the tractor when stopping. Manufactured according to the standards of the HTZ plant, it is durable, wear-resistant and heat-resistant.
Application:
Used on tractors HTZ-17221, HTZ-242, HTZ-248, Slobozhanets, T-150, T-151, T-156 and other models with a similar design of the wheel brake mechanism.
The block works in tandem with a brake expansion cam - left or right (151.38.208, 151.38.209, 151.38.209-4, 151.38.209-4-01), which, through a mechanical drive, expands the brake pads, pressing them against the inner surface of the brake drum 151.38.114-1, thereby creating a brake effort.
This block is the most important element of the brake system, providing effective deceleration and fixation of the tractor when stopping. Manufactured according to the standards of the HTZ plant, it is durable, wear-resistant and heat-resistant.
Application:
Used on tractors HTZ-17221, HTZ-242, HTZ-248, Slobozhanets, T-150, T-151, T-156 and other models with a similar design of the wheel brake mechanism.
-
Catalog number 151.38.049-1
