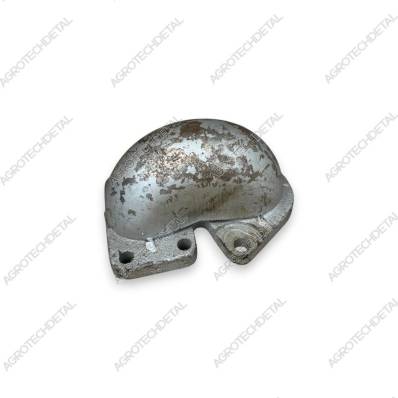

The turbine pipe 60-28103.10 is used in the exhaust system of SMD-60 engines and is designed to supply exhaust gases from the exhaust manifold to the turbocharger, ensuring efficient operation of the engine pressurization system.
The pipe is connected to the right exhaust manifold 60-07101.10 through a gasket 60-28016.10 and secured with studs. On the opposite side, it is connected to the bellows expansion joint 60-28014.12 using a gasket 60-28018-01 and studs. This design makes it possible to compensate for thermal expansion of exhaust system elements and reduce the load on the turbocharger.
The part is the connecting link between the engine exhaust system and the TKR11N-1 112.30001.10 / 212.30001.00 turbocharger, providing a stable flow of exhaust gases to spin up the turbine and improve engine efficiency. The tightness of the pipe connections directly affects the performance of the turbocharging, engine power and its efficiency.
It is used on HTZ T-150, T-150K, T-151 tractors and other equipment equipped with SMD-60, SMD-62 engines and a TKR11N-1 turbocharger.
-
Chassis type колесный / гусеничный
-
Applicability by brand ХТЗ
-
Number of uses in a unit/technique 1 pcs
-
Installation location коллектор левый / коллектор правый
-
Catalog number 60-28103.10
-
Node выхлопная система
-
Engine СМД-60
