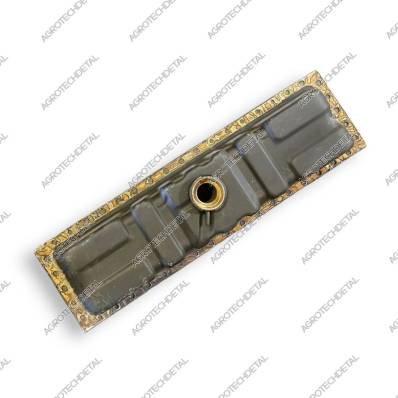

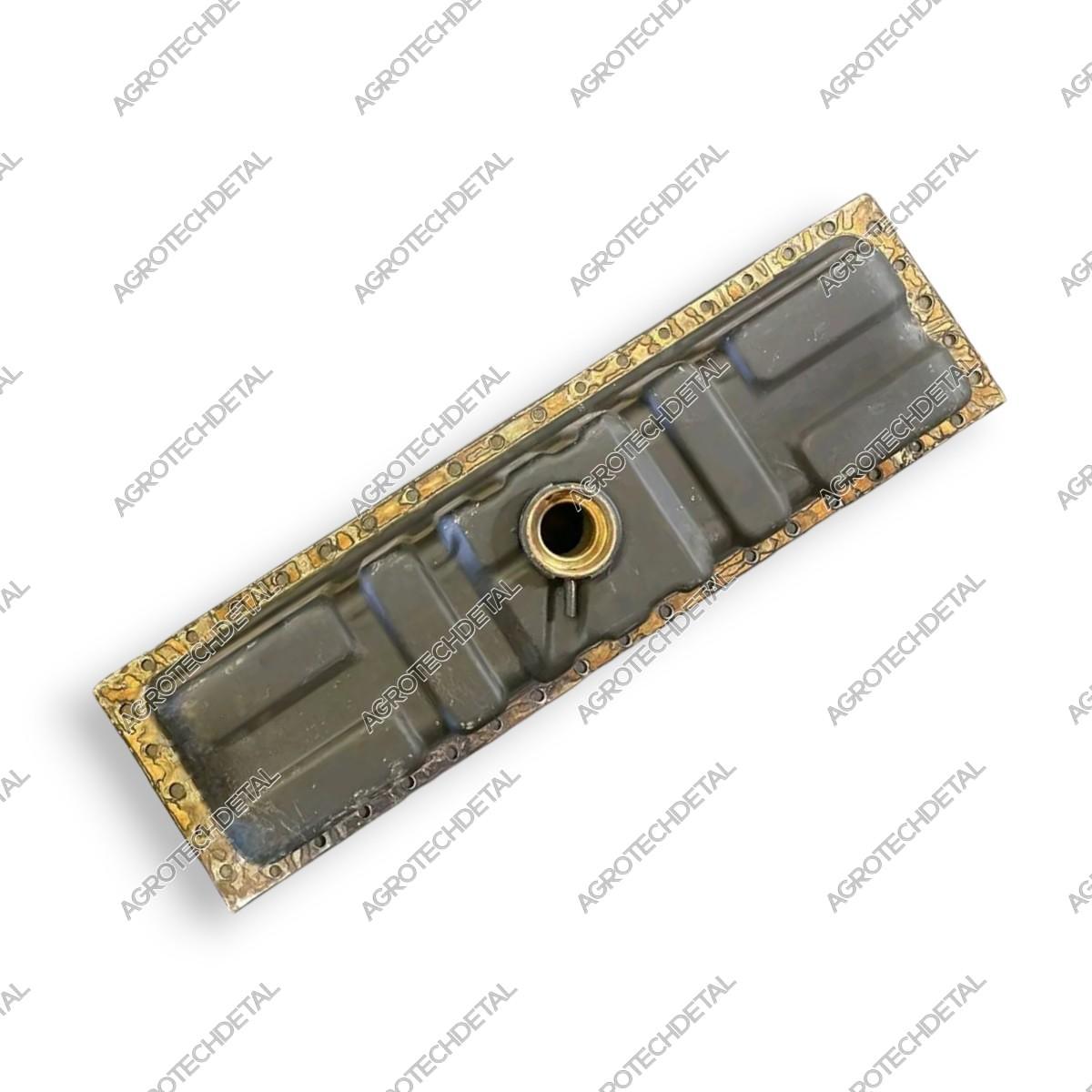

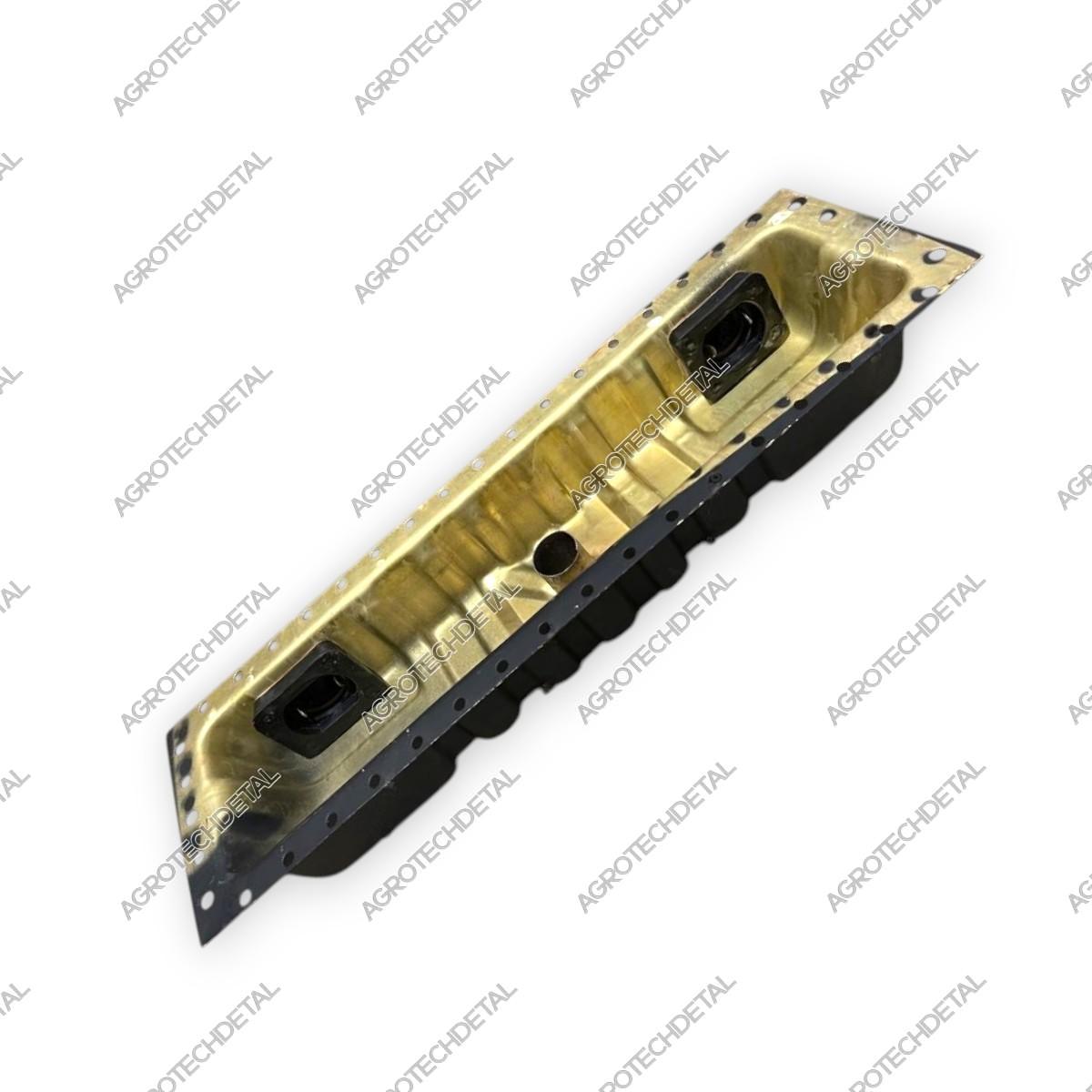

The upper radiator tank 150U.13.105-1 / 150.13.200 is used in the cooling system and is hermetically adjacent to the radiator core using a gasket 150U.13.236, ensuring a reliable seal and correct circulation of coolant.

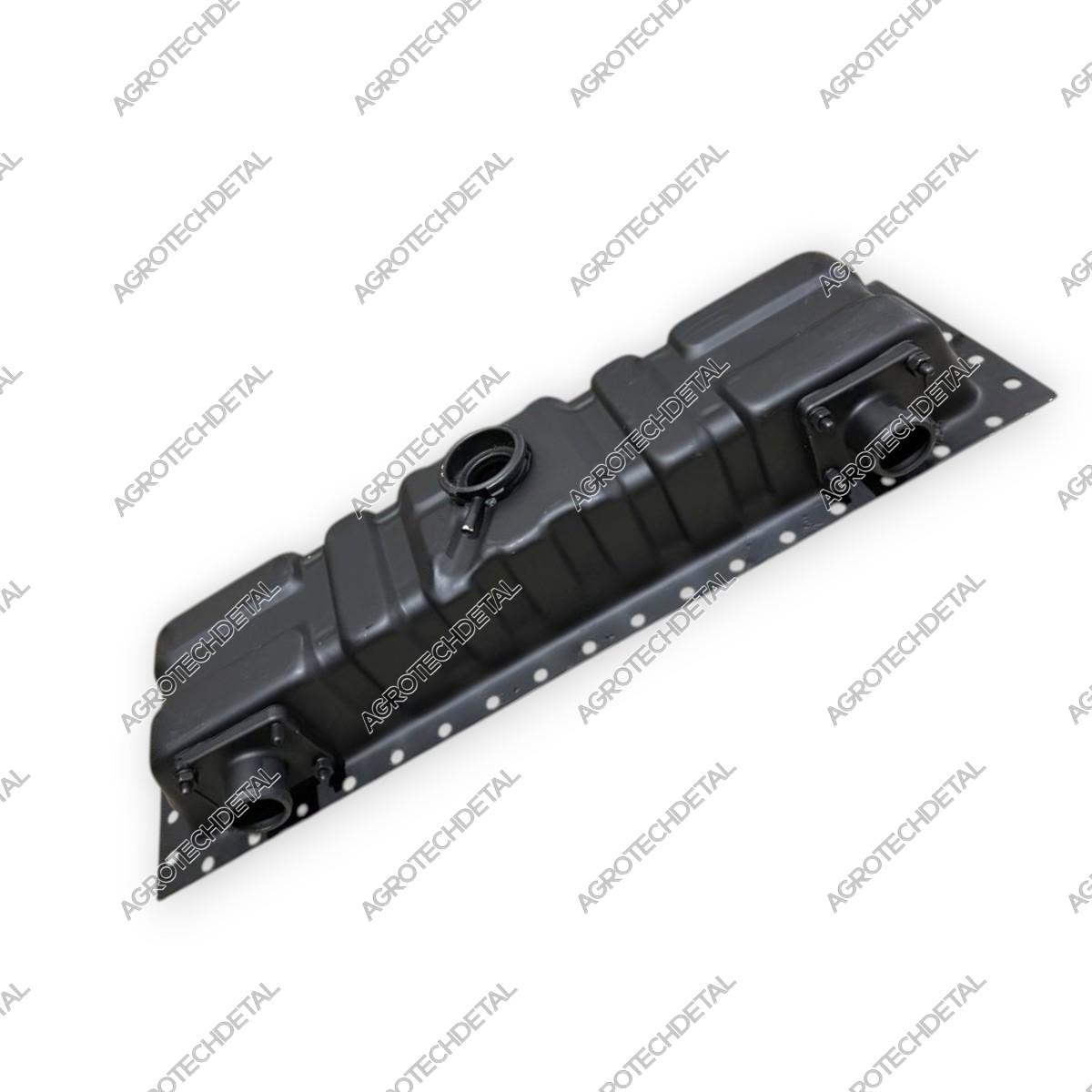

The upper tank has seats for installation of flanges 85U.13.342, to which the pipe 150U.13.315 is connected through gaskets M04U.13.133. When equipped with two flanges 85U.13.342 / 85U.13.340, two gaskets M04U.13.133 and two pipes 150U.13.315, the part forms an assembly unit “upper radiator tank assembly” with catalog number 150U.13.030-1 / 150.13.086.
The radiator tank is used in the cooling system of SMD-60 engines installed on the KhTZ T-150, T-150K, T-151, T-151K, T-156 tractors, as well as on other KhTZ models with a similar cooling system design.
The upper tank has seats for installation of flanges 85U.13.342, to which the pipe 150U.13.315 is connected through gaskets M04U.13.133. When equipped with two flanges 85U.13.342 / 85U.13.340, two gaskets M04U.13.133 and two pipes 150U.13.315, the part forms an assembly unit “upper radiator tank assembly” with catalog number 150U.13.030-1 / 150.13.086.
The radiator tank is used in the cooling system of SMD-60 engines installed on the KhTZ T-150, T-150K, T-151, T-151K, T-156 tractors, as well as on other KhTZ models with a similar cooling system design.
-
Applicability by brand ХТЗ
-
Number of uses in a unit/technique 1 pcs
-
Installation location сердцевина
-
Catalog number 150У.13.105-1 / 150.13.200 | 150У.13.030-1 / 150.13.086
-
Node система охлаждения
