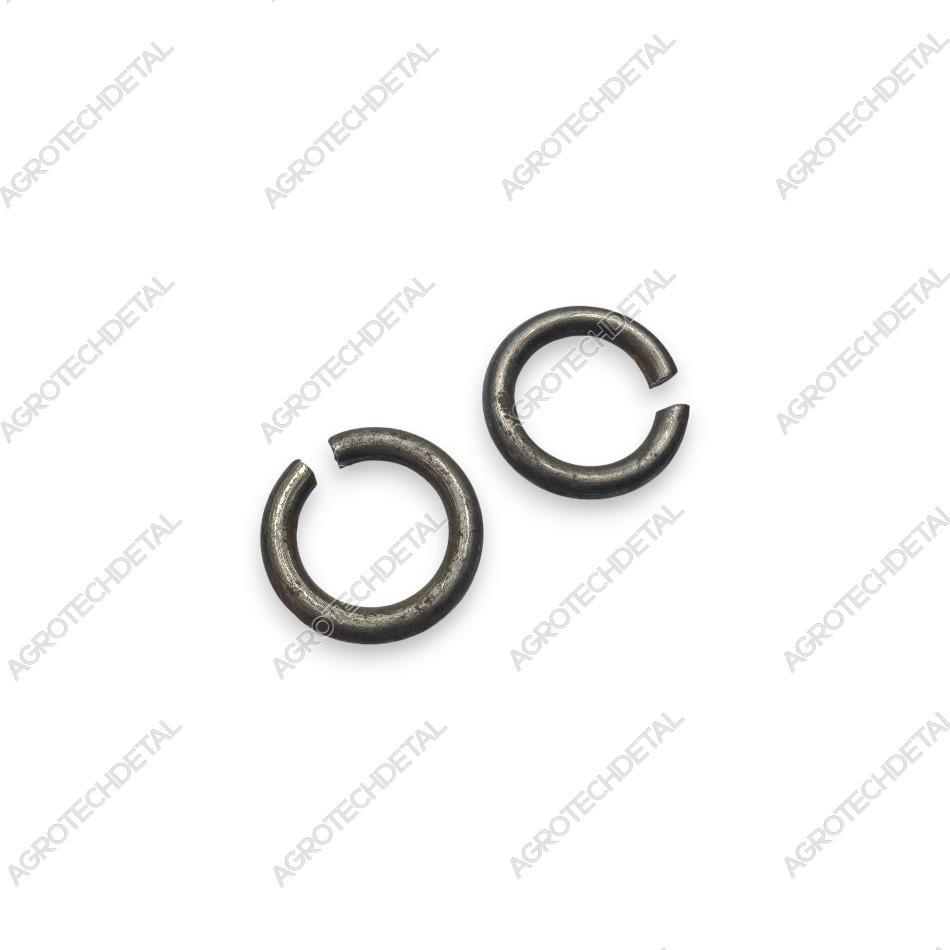

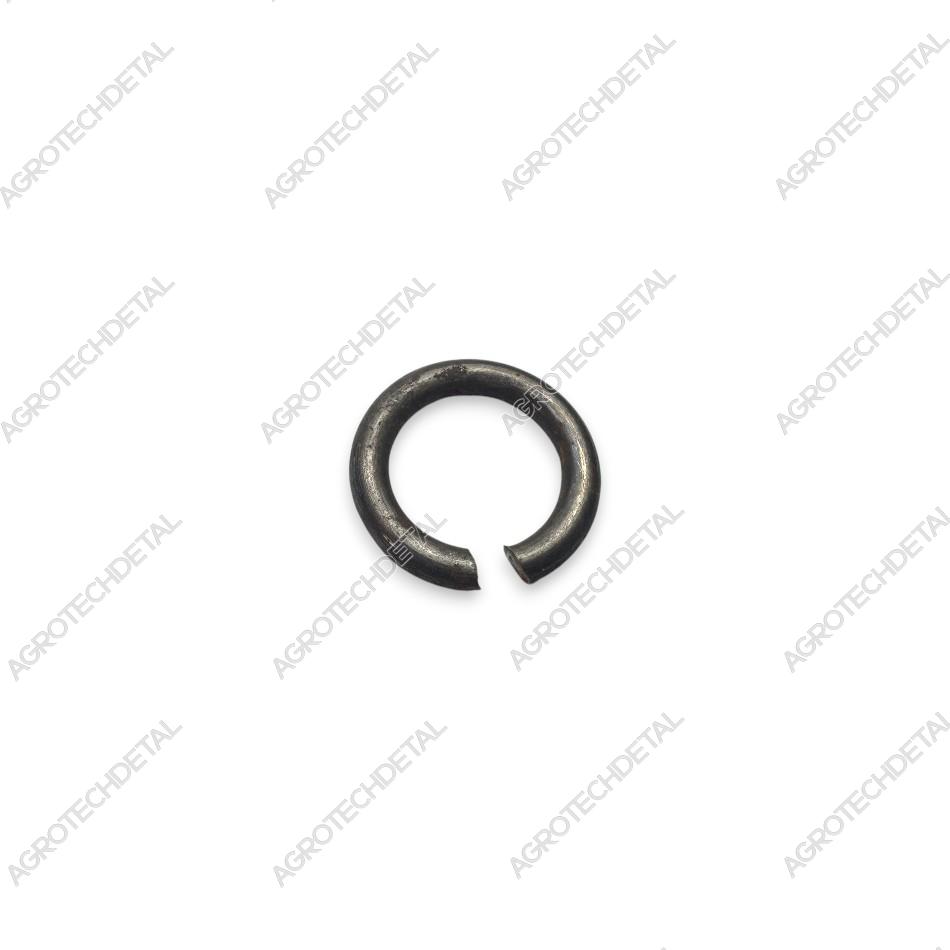

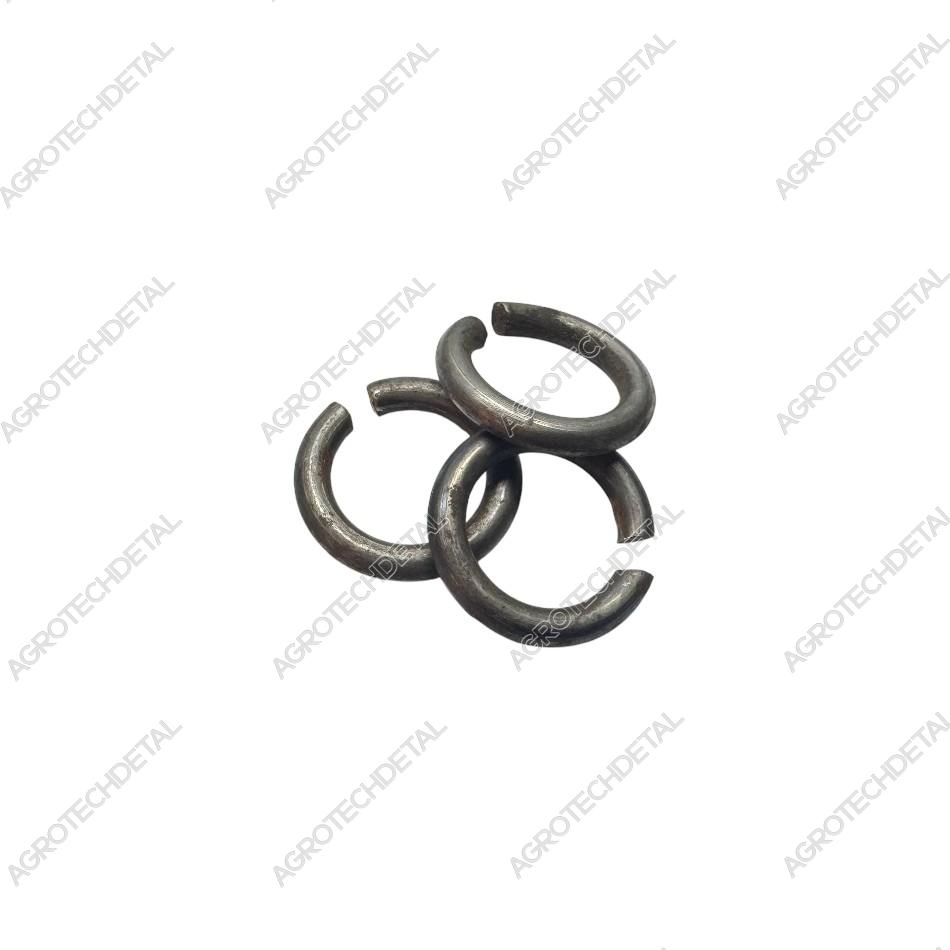

Retaining ring 150.34.111-1

Retaining Ring 150.34.111-1 is used in the undercarriage of HTZ crawler tractors and is designed to securely retain the Track Link Pin 150.34.102-2A, preventing axial movement during operation. The ring is installed together with Washer 150.34.106-1 on the track link pin, ensuring reliable retention of the connection even under heavy impact and dynamic loads.

The retaining ring is part of the track link joint assembly and is used together with Track Link 150.34.101-4. Proper installation prevents the track link pin from moving out of position, maintaining the strength and reliability of the track chain during operation in demanding field conditions.

The main related components of this assembly are Track Link 150.34.101-4, Track Link Pin 150.34.102-2A, Washer 150.34.106-1, and Track Assembly 150.34.001-8. When servicing the undercarriage, it is recommended to inspect all components of the joint. If the retaining ring has lost its spring tension or shows signs of deformation or mechanical damage, it should be replaced together with the washer and any other worn components of the assembly.

Retaining Ring 150.34.111-1 is used on HTZ T-150, T-150-05-09, HTZ-181, HTZ-181.20, and other HTZ crawler tractors with the same track undercarriage design.
