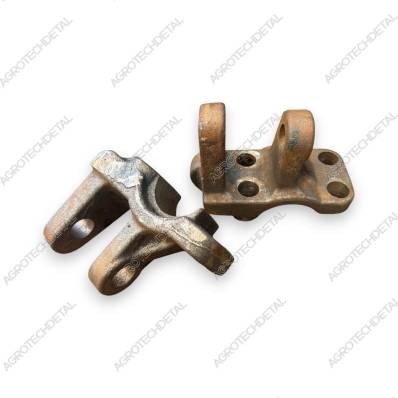

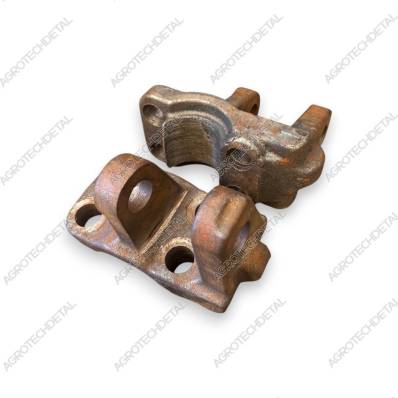

Trailed yoke 150.35.101 (left) and 150.35.102 (right) are used in the trailer hitch of KhTZ tractors and are designed for attaching a trailing bracket, ensuring reliable aggregation of the tractor with trailed and agricultural machines.
The yokes are connected to the towing bracket 150.35.103-1 via pins 77.60.150, forming a hinged connection capable of absorbing significant traction loads. The yokes are attached to the lower axis of the attachment 150.56.102-1 using bolts 150.35.104 and yoke brackets: left 151.56.176 and right 151.56.176-01.
The design of the unit ensures strong fixation of the towing bracket, compensates for the loads that arise when moving and working with towed equipment, and also contributes to the long-term operation of the towbar. The good condition of the yokes is especially important when using heavy trailers and wide-cut implements.
They are used in the towbar of tractors HTZ T-150K, T-151K, T-156, HTZ-17221, HTZ-242K, HTZ-248K and other models with a similar design of the towing device.
The yokes are connected to the towing bracket 150.35.103-1 via pins 77.60.150, forming a hinged connection capable of absorbing significant traction loads. The yokes are attached to the lower axis of the attachment 150.56.102-1 using bolts 150.35.104 and yoke brackets: left 151.56.176 and right 151.56.176-01.
The design of the unit ensures strong fixation of the towing bracket, compensates for the loads that arise when moving and working with towed equipment, and also contributes to the long-term operation of the towbar. The good condition of the yokes is especially important when using heavy trailers and wide-cut implements.
They are used in the towbar of tractors HTZ T-150K, T-151K, T-156, HTZ-17221, HTZ-242K, HTZ-248K and other models with a similar design of the towing device.
-
Chassis type колесный / гусеничный
-
Applicability by brand ХТЗ
-
Number of uses in a unit/technique 1+1 pcs
-
Installation location прицепная скоба / кронштейн бугеля левый / кронштейн бугеля правый / нижняя ось навесного устройства
-
Weight 150.35.101 / 150.35.102
-
Node прицепное устройство
