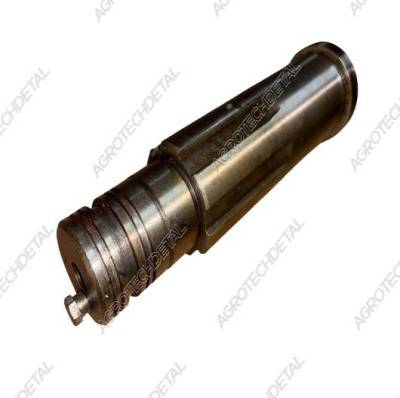

PTO shaft 150.41.083A / 150.41.380-1 with shank for HTZ tractors
PTO shaft 150.41.083A is used in the power take-off shaft (PTO) system of KhTZ tractors. Its feature is the presence of a plug, with which it is supplied under the number 150.41.083A, and without a plug - under the number 150.41.380-1. The shaft serves as the basis for installing a shank, through which the attachment is driven.
Specifications:
-
Compatible withhydraulic coupling 150.41.015-7which transmits torque
-
Depending on the connected units, different options for PTO shanksare installed in the shaft:
-
150.41.470A - z=8 (without ring)
-
150.41.470A-01 - z=6
-
150.41.470A-02 - z=21
-
150.41.470A-03 - z=20
-
151.41.085 - shank assembly with o-ring 046-052-36-2-2
-
Purpose:
-
Provides transmission of rotation from the PTO to agricultural units and trailed equipment
-
Used in all current models of HTZ tractors, including T-150K, T-151K, ХТЗ-242Кetc.
Benefits:
-
Reliable power transmission
-
Universal design for installation of various types of shanks
-
High resistance to loads and vibrations
Shaft and shanks in stock. Delivery throughout Ukraine and abroad
