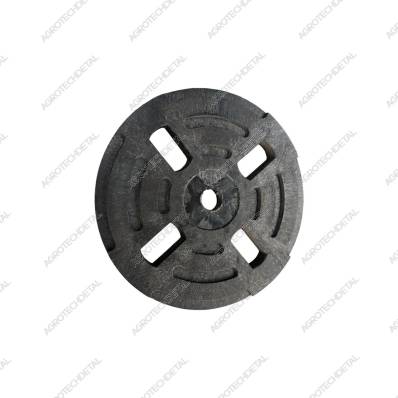

The drive washer 60-16104.10 is an element of the drive mechanism of the high-pressure fuel pump (HPF) 221.1111004 of the SMD-60 engine, which is installed on HTZ tractors. It plays an important role in ensuring correct locking and smooth operation of the drive, contributing to the stable operation of the fuel system.
The washer interacts with a number of mating parts:
It is used on SMD-60, SMD-62, SMD-72 engines installed on T-150, T-151, T-156 tractors and other agricultural machinery produced by the Kharkov Tractor Plant.
The washer interacts with a number of mating parts:
- Gasket 60-16105.00, ensuring the tightness of the connection;
- Spacer spring 60-16106.10, creating the necessary tension;
- Support plate 60-16123.00, which serves as a support for the unit;
- A nut M10-6N.6.016, which secures the entire assembly assembly.
It is used on SMD-60, SMD-62, SMD-72 engines installed on T-150, T-151, T-156 tractors and other agricultural machinery produced by the Kharkov Tractor Plant.
-
Applicability by brand HTZ
-
Number of uses in a unit/technique 1 pcs
-
Installation location fuel pump
-
Catalog number 60-16104.10
-
Node fuel pump with drive
-
Engine SMD-60
