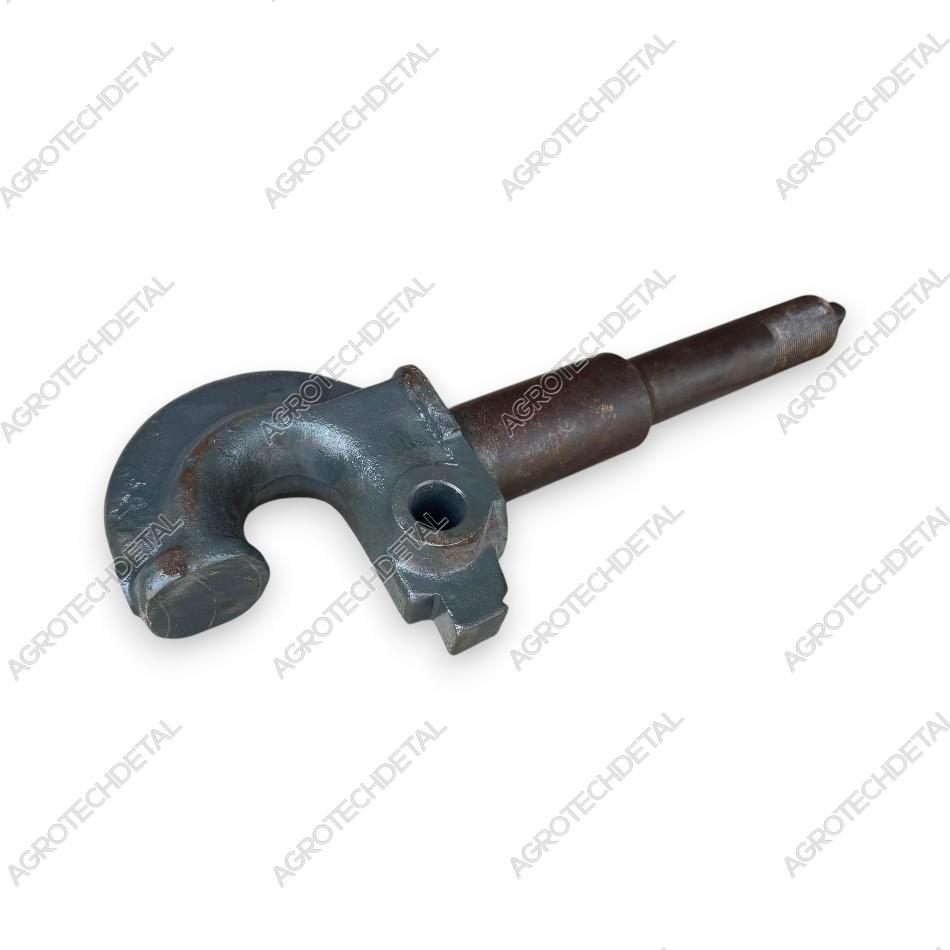

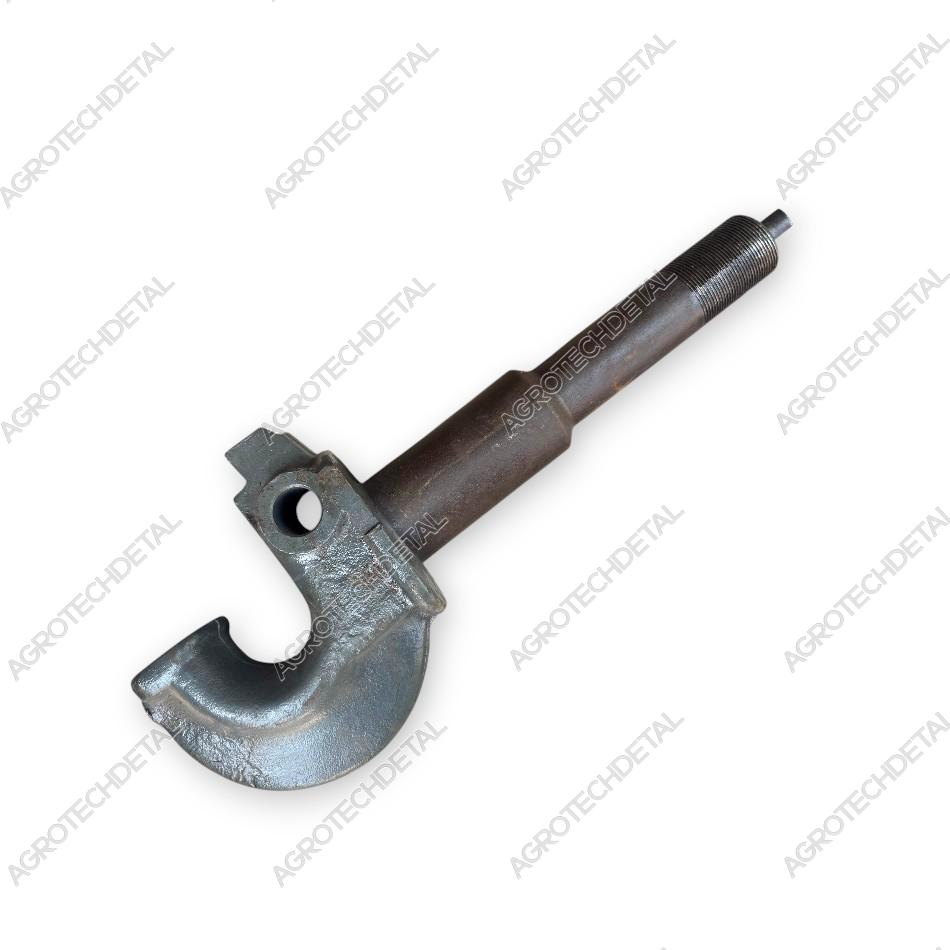

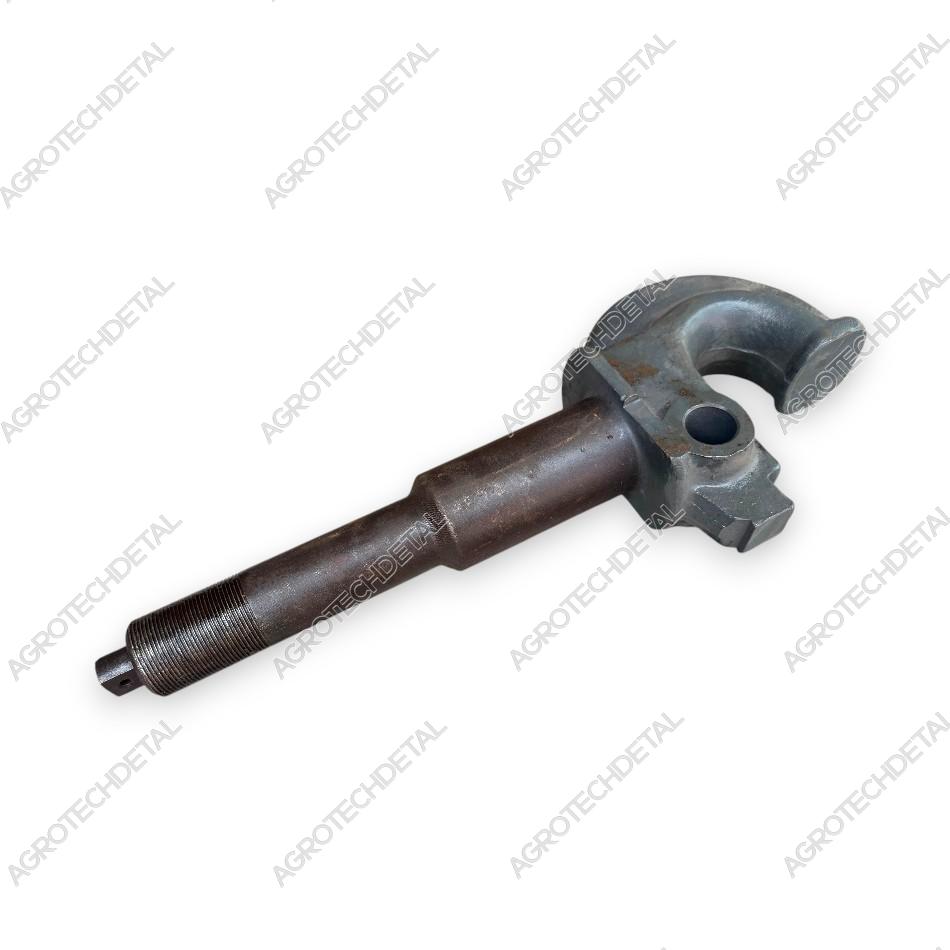

Traction hook 151.58.102-2 / 151.58.017 old style (long)

Traction hook 151.58.102-2 without a latch (“bare”) / 151.58.017 with a latch (“with lip”) is used in the towing device of KhTZ tractors and is intended for aggregating the tractor with trailed agricultural machines and vehicles.

This modification refers to the old model and is a long version of the hook, installed in a housing with brackets 151.58.013 and included in the hook with shock absorber 151.58.015-2 assembly. Available in two versions: 151.58.102-2 - without a latch (“bare” hook) and 151.58.017 — with a latch (“with lip”).

The hook assembly includes the following parts:

• bolt 8.41.111;
• nut M27×2-6N.8.0112;
• cotter pin 5×50.016;
• ring 8.41.106 (SP-69-61-7);
• bracket 8.41.103;
• spring 16-127A;
• finger 8.41.105;
• latch 8.41.014;
• latch 8.41.102-1;
• ring 8.41.112;
• washer 6 65G 05;
• bolt M6-6g×40.66.019;
• stopper 8.41.110;
• bushing 54.48.610;
• cable 5.41.131.

The hook absorbs significant traction loads and provides a reliable connection between the tractor and trailed equipment. The version with a latch allows you to quickly fix the trailer hitch and prevents its spontaneous detachment, and the version without a latch is used when repairing an existing unit or as a basis for completing a towbar.

It should be taken into account that the long hook of the old model differs from the short hook of the new model 151M.58.017 in design, length of the working part and set of related parts.

It is used in the towing device of tractors HTZ T-150K, T-151K, T-156, HTZ-17221 and other models with an old-style hydraulic hook.
